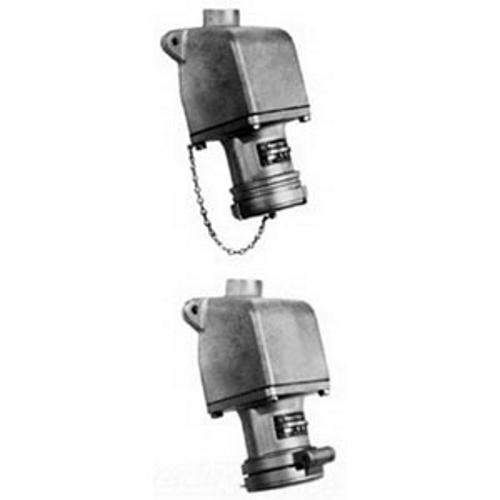

Appleton® Powertite® ADRE3022-75 1-Phase Grounding Style 1 Pin and Sleeve Receptacle With AEE Mounting Box, 600 V AC/250 V DC, 30 A, 2 Poles, 2 Wires
Sku #78138115846
MFG #ADRE3022-75
Attributes
| Type: | 1-Phase Grounding Style 1 |
| Amperage Rating: | 30 A |
| Frequency Rating: | 50 to 400 Hz |
| Voltage Rating: | 600 V AC/250 V DC |
| Horsepower: | 10 hp |
| Number of Poles: | 2 |
- UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
- ACP3022BC Metallic Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction Applications
- Shell grounding style 1
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, brass with beryllium copper springs
