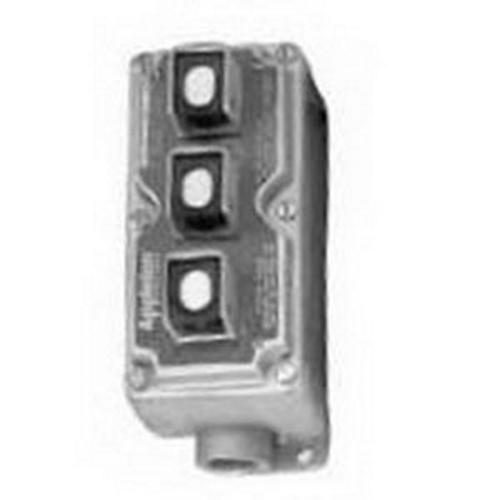

Appleton® EFDCL75-U3 3-Circuit 3-Device Feed-Through Pushbutton Control Station, 600 V AC, 10 A, 1NO-1NC Contact, NEMA 3 NEMA Rating
Sku #78138113307
MFG #EFDCL75-U3
Attributes
| Type: | 3-Circuit 3-Device Feed-Through |
| Voltage Rating: | 600 V AC |
| Contact Configuration: | 1NO-1NC |
| Series: | EFD |
| Amperage Rating: | 10 A |
| Contact Mode: | Momentary |
- Malleable iron bodies, copperfree aluminum covers, copperfree aluminum and non-metallic components
- Factory sealed, eliminating the need to add sealing fittings and compound at each conduit entrance
- Stainless steel pushbutton shaft and bushings for long, maintece free operation
- Heavy duty push buttons, 10 A, 600 VAC rated
- Corrosion-resistant captive stainless steel hex head cap screws hold covers to body
- All EFD/EFDB front operated push buttons are supplied standard with lockable guard to prevent unauthorized operation
- Many models suitable for group B atmospheres
- Internal Ground Screw
- Used in chemical and petrochemical plants, refineries and other industrial settings where flammable vapors, gases or highly combustible dusts may be present
- UL 508/698/1203|UL File No. E10449|UL File No. E81751|Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III
- 1 Year
