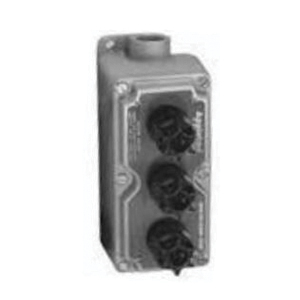

Appleton® EFDCL75-J3 Feed-Through Control Station, 120 V AC/DC, NEMA 3/7CD/9EFG NEMA Rating
Sku #78138113306
MFG #EFDCL75-J3
Attributes
| Type: | Feed-Through |
| Voltage Rating: | 120 V AC/DC |
| Contact Rating: | 10 A at 600 V AC |
| Series: | EFD |
| Number of Pilot Lights: | 3 |
| Actuator: | Push Button |
- 1 Year Limited
- cULus E10449/E81751|NEC/CEC Class I Division 1 and 2 Group C D/Class II Division 1 and 2 Group E F G/Class III|UL 508/698/1203
- Internal Ground Screw
- Ideal for installation in chemical and petrochemical plants, refineries and other process industries, hazardous locations
- Constructional feature explosionproof and dust-ignitionproof
- Factory sealed eliminates the need for adding sealing fittings and compound at each conduit entrance
- The devices are enclosed in separate sealing chamber that has smooth, double flanges that mate both to the cover and mounting enclosure to provide flame-tight joints
- EFD factory sealed pilot lights are supplied with red jewel/guard assembly and 120 VAC/VDC, 50/60 Hz, 6 W, type 6S6 lamp
- EFD factory sealed selector switches furnished with nylon cam-operated, heavy duty pushbuttons for either 2-position or 3-position maintained contact operation
- They offer high thermal and arc resistance, high dielectric strength
- EFD momentary pushbuttons are supplied with lockout type guards as standard, a hole in the guard will accept locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- EFD backbox supplied with internal ground screw
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Smooth rounded integral bushing in each hub protects conductor insulation
- Corrosion resistant captive stainless steel hex head cap screws hold covers to body
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Push button and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements, assures positive contact and long, trouble-free operation
- Clearly marked terminals with brass screws assure quick, easy wiring
- Pigtail leads from pushbuttons are factory sealed in sealing well
- 120 VAC 6 W 6S6 Incandescent lamp
- 3 device holes
