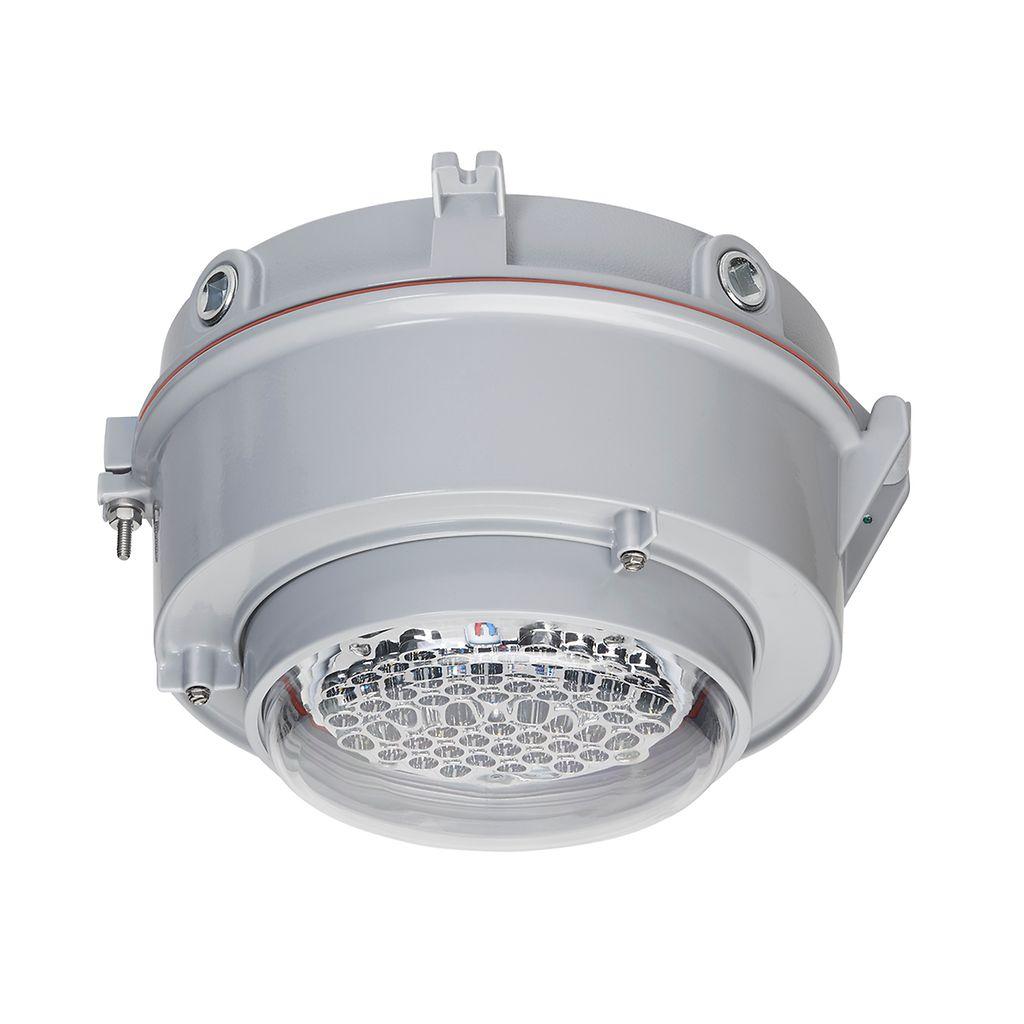

Appleton® MLLED4CD5BU MLLED Enclosed Gasketed Explosion-Proof Outdoor Lighting, LED Lamp, 49.3, 50.5, 48, 50.4 W Fixture, 120 to 277 VAC, 125 to 300 VDC, Gray Epoxy Powder Coated Housing
Sku #78138111475
MFG #MLLED4CD5BU
Attributes
| Type: | Enclosed Gasketed |
| Voltage Rating: | 120 to 277 V AC/125 to 300 V DC |
| Amperage Rating: | 0.48 A at 120 V/0.16 A at 347 V/0.20 A at 277 V/0.10 A at 480 V |
| Series: | MLLED |
| Fixture Wattage: | 49.3, 50.5, 48, 50.4 W |
| Lamp Type: | LED |
- Suited for low mounting heights , allow for mounting in any location
- Compact, light weight, low profile design is suited for low mounting heights
- Seven standard mounting hood designs allow for mounting in any location
- Uses the same mounting hoods as the Mercmaster III HID
- Customize to the application requirements with four different globe options, clear and diffused polycarbonate, clear glass, or prismatic glass refractor
- Three light output levels for retrofit of HID fixtures up to 175 W
- Emergency version provides up to 1400 lumens illumination for 90 min of emergency lighting with clear lens or 800 lumens illumination for 180 min of emergency lighting
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Standard screw-type terminal block can accept 24-10 AWG wire
- NPT threads standard
- Emergency version features functional diagnostic test self-initiates every 14 days after initial start up
- Duration test is automatically performed once per year
- Green and Red LEDs indicate charging status and provide fault warning on Emergency version
- Quick disconnect connector easily cuts power between LEDs and battery management module to allow maintenance in hazardous locations on Emergency version
- Universal ratings provide vast regional coverage and can be specified by end users to meet NEC, CEC, IECEx or ATEX requirements
- NEC/CEC Certified Class I, Division 2, Groups A, B, C, D/Class II, Division 1 and 2, Group E, F, G/Class III/Class I Zone 2 AEx ec IIC/Zone 21 AEx tb IIIC/Class I Zone 2 Ex ec IIC/Zone 20 Group IIIC/Type 3R, 4$ 4X/IP66/IP67/IDA Approved with Visor
