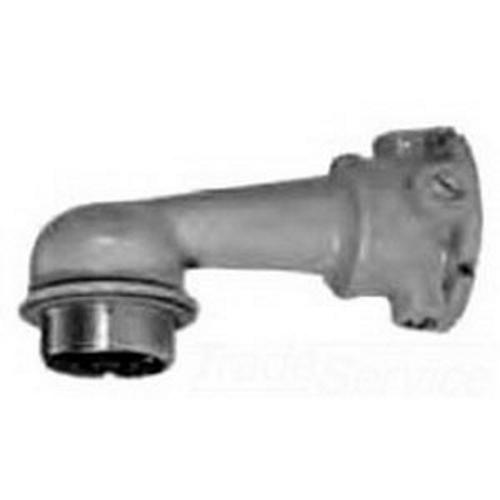

Appleton® AALB-50 Dust-Ignitionproof Explosionproof Long Bracket Mounting Hood, For Use With A-51™ Incandescent Factory Sealed Luminaires, 1/2 in Hub, Malleable Iron, Gray
Sku #78138111125
MFG #AALB-50
Attributes
| Type: | Dust-Ignitionproof Explosionproof Long Bracket |
| Specifications: | 1/2 in Hub |
| Finish: | Epoxy Powder Coated |
| Suitable For Use With: | A-51™ Incandescent Factory Sealed Luminaires |
| Material: | Malleable Iron |
| Color: | Gray |
- New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts loosen two screws, rotate and remove for quick wiring
- Wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate exchange with stand-by unit
- Specially formulated two coat baked epoxy enamel provides superior protective finish to resist corrosion
- New high temperature glass reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood
- A-51™ fixture units have standardized threads to fit all A-51™ and mounting hoods
- Four hubs, three close-up plugs
- Wet Locations
- UL 1598|UL 844|UL File No. E10444|CSA C22.2 File No. 250/137|CSA File No. 025428|NEC Compliant|CEC For Group C and D, Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class III
