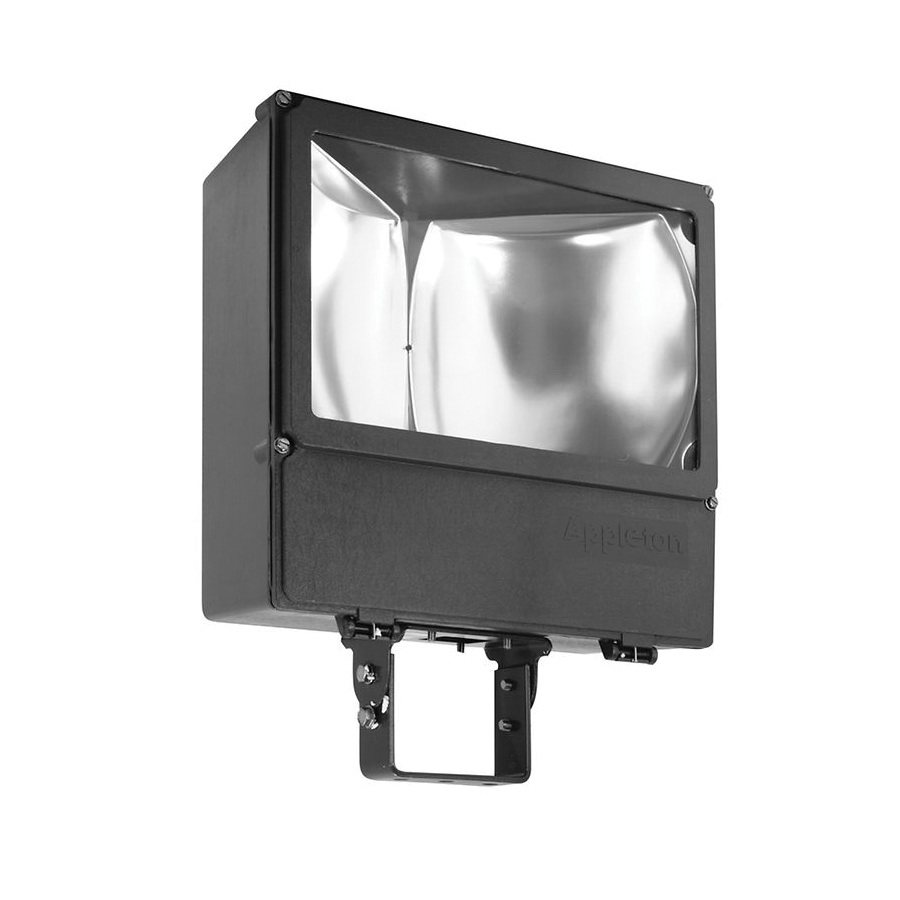

Appleton® Areamaster™ GAM771LTTI2 250/400 Explosionproof HID Floodlight Fixture With Integral Ballast, 465/464 W Fixture, 120/277/347 V AC, Architectural Bronze Polyester Housing
Sku #78138110399
MFG #GAM771LTTI2
Attributes
| Type: | Explosionproof HID |
| Voltage Rating: | 120/277/347 V AC |
| Amperage Rating: | 1/1.32/1.4/1.7/3.3/3.8 A |
| Series: | 250/400 |
| Fixture Wattage: | 465/464 W |
| Lamp Wattage: | 400 W |
- Compact in size, attractively styled contemporary design, rugged and dependable
- A wide range of ballasts and voltages are available for both domestic and export applications1-piece housing with 1-piece lens cover
- The cover is secured by four 1/4 in Dia captive stainless steel slotted hex head bolts
- Thermal shock and impact resistant glass lens
- Heavy duty, high temperature silicone rubber gasket, firmly seated
- Heavy duty mogul base porcelain socket with heavy gauge brass, nickel plated, double lamp grip screw shell and spring loaded center contact
- Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
- Cool operating temperatures translate into long luminaire life
- 3.3 A at 120 VAC, 1 A at 277 VAC, 1.4 A at 347 VAC starting, 3.8 A at 120 VAC, 1.7 A at 277 VAC, 1.32 A at 347 VAC operating 60 Hz
- Pulp and Paper Mils, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Waste and Sewage Treatment, Parking Garages and other Areas Where Dust, Water, Dirt and Rough Usage are a Problem, Hazardous, Marine and Wet Locations
- UL 1598, 1598A, 844|UL File No. E10794|CSA C22.2 No. 25, C22.2 No. 94, C22.2 No. 97, C22.2 No. 137, LR25248|NEC Class I, Division 2, Groups A, B, C, D
