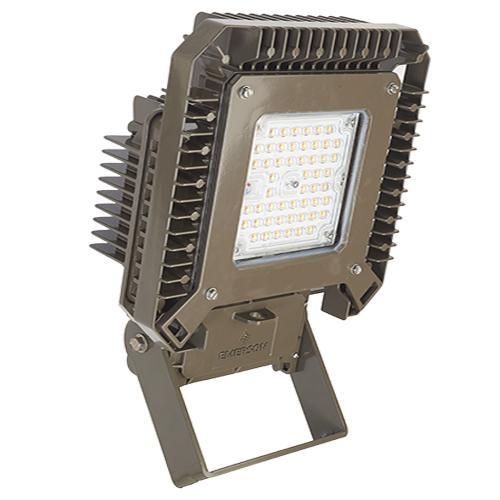

Appleton® Areamaster™ II IAMLGL8WG7BH Generation 2 Rectangular Floodlight Luminaire, LED Lamp, 149/150 W Fixture, 347 to 480 V AC, Architectural Bronze Polyester Housing
Sku #78138109986
MFG #IAMLGL8WG7BH
Attributes
| Type: | Generation 2 Rectangular |
| Voltage Rating: | 347 to 480 V AC |
| Amperage Rating: | 0.32/0.43 A |
| Series: | IAMLG |
| Fixture Wattage: | 149/150 W |
| Lamp Type: | LED |
- Flood, Security Lighting, Production Facilities, Warehouses, Processing Plants, Storage Areas, Parking Garages, Lots, Industrial Applications and Ordinary, Wet Locations
- Three lumen outputs provide up to 19500 Lumens with a choice of optics for optimal light distribution
- Separate field wiring compartment with screw terminal block for easy and secure connection (can accept UL/CSA 26 to 10 AWG)
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass one piece lens with captive fasteners
- Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slipfitters for easy retrofit
- (2) 3/4 in NPT entries provided
- 150 W at 347 VAC, 149 W at 480 VAC
- 0.43 A at 347 VAC, 0.32 A at 480 VAC
- RoHS Compliant|NEC Certified|CEC Certified|UL 1598|UL 1598A|CSA C22.2 No. 250.0|cCSAus 164460 File No. 70073607
