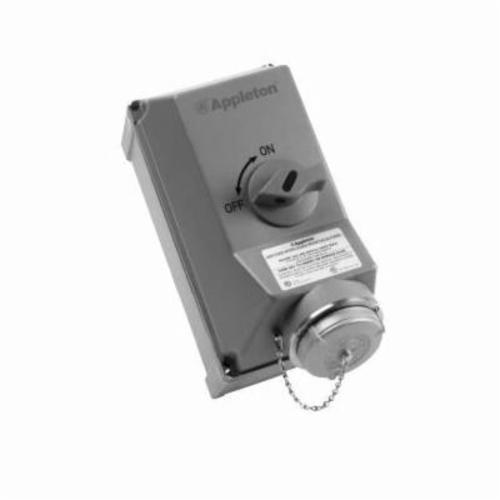

Appleton® ASR3034 Non-Fused Interlocked Receptacle With Enclosed Disconnect Switch, 600 V AC, 30 A, 4 Poles, 3 Wires
Sku #78138109847
MFG #ASR3034
Attributes
| Type: | Non-Fused |
| Amperage Rating: | 30 A |
| Number of Wires: | 3 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 4 |
| Hub Size: | 1 in |
- Moveable mounting feet allow for installation on irregular surfaces for easy installation
- Internal mounting tubes where mounting area is limited
- Hidden hinge system eliminates sanitation concerns
- Switch is the latest in technology utilizing self-cleaning contacts and driven by a solid bridge bar to prevent single phasing of motors
- The quick make/break action provides long electrical life
- Meets OSHA requirements for lockout/tagout and switch can be locked in the Off position
- Utilizes style 2 (shell and extra pole) grounding and 3-wires, 4-poles receptacle wiring
- Class J fusing standard on fusible units
- Removable fuse holders allow for installation and replacement of fuse away from interior of unit
- Supplied conduit hub can be installed on top or bottom of the enclosure
- Dead front design receptacle is not energized until plug is fully inserted and switch is engaged
- IP66 deg of protection
- For welders generators, compressors, infrared ovens, batch feeders, conveyors, truck terminals, marine docks, automotive and steel processing plants
- For pulp and paper processing plants, milk processing plants and creameries, fabrication yards and shipyards and refrigerated truck terminals applications
- VALOX® thermoplastic polyester with seamless form-in place gasket enclosure, stainless steel screws for outstanding corrosion resistance screw, materials are UV stabilized
- cUL Listed|UL 98|UL 1682|UL 1686 File No. E304212|UL File No. E160652|CSA 22.2 No. 4/182.1
- Welders, Generators, Compressors, Infrared Ovens, Batch Feeders, Conveyors, Truck Terminals, Marine Docks, Automotive and Steel Processing Plants Applications
