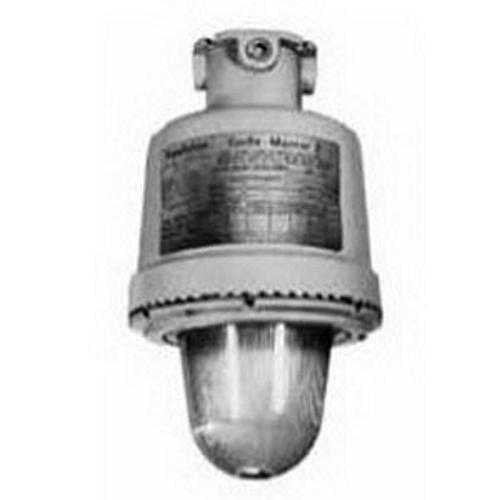

Appleton® Code Master™ Jr. CJFC2675GBU Dust-Ignitionproof Factory Sealed Explosionproof Luminaire With Globe and Guard, (1) Fluorescent Lamp, 28 W Fixture, 120 to 277 VAC, 125 VDC, Epoxy Powder Coated Housing
Sku #78138109765
MFG #CJFC2675GBU
Attributes
| Type: | Dust-Ignitionproof Factory Sealed |
| Voltage Rating: | 120 to 277 V AC/125 V DC |
| Amperage Rating: | 0.25 to 0.11 A |
| Series: | CJ Series |
| Fixture Wattage: | 28 W |
| Lamp Type: | Fluorescent |
- Fixtures operate safely in high ambient temperatures
- Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
- Patented wireless design threading of fixture unit onto mounting hood makes electrical connection (the only wiring required is attaching two wires to connection block in mounting hood)
- Safe, easy servicing or replacement without disconnecting any wiring
- ACME double-lead threads do not stick or gall and require only half as many turns as single lead threads when installing or removing fixture from mounting hood
- All threaded joints are flame-tight
- Factory sealed, external seals not required
- Heat and impact-resistant globes have smooth dust-resistant exterior
- Superior corrosion resistance
- Fluorescent light source reduces energy cost
- Position of the lamp socket and interior prism design of the glass globe provide optimum light distribution and control
- Ultra long 100000 hours of life with less than 30% lumen depreciation after 60000 hours of operation and no cycling at end of life
- Low total harmonic distortion (less than 10%)
- Virtually maintece free
- For use in marine and wet locations, and in hazardous locations such as plants where plastics, paints, thinners and petrochemicals are manufactured, and in other areas where ignitable vapors, dust, moisture and corrosive elements may be present, where an instant-on white light is desired and for locations that are difficult to access
- Limited
- Guard
- UL 1598/844/E10444|CSA C22.2 No. 250, C22. 2 No. 137|CSA 025428|NEC/CEC Class I, Division 1 and 2, Groups B, C, D|Class II, Division 1 and 2, Groups E, F, G|Class III
