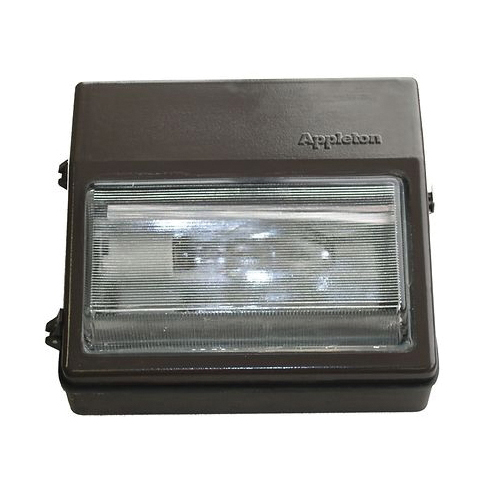

Appleton® Wallmaster™ GWM10L48H Enclosed Gasketed Integrally Ballasted HID Light Fixture, 1 High Pressure Sodium Lamp, 480 V AC, Bronze Tone Baked Epoxy Coated Housing
Sku #78138109507
MFG #GWM10L48H
Attributes
| Type: | Enclosed Gasketed Integrally Ballasted |
| Voltage Rating: | 480 V AC |
| Lamp Wattage: | 100 W |
| Series: | GWM |
| Lamp Type: | High Pressure Sodium |
| Lamp Base Type: | Mogul |
- For outdoor and hazardous applications
- Attractive yet rugged design
- Side hinged door allows unobstructed access to lamp and wiring components
- Built in stop limits door opening to 90 deg and protects the lens from breakage
- Latch mechanism unique heavy duty stainless steel latch secures the cover assembly while allowing the luminaire to be relamped without the use of tools
- Prismatic tempered glass lens is thermal-shock- and impact-resistant giving a soft diffused light
- Installation is fast and easy
- Luminaire is furnished with two plugged 1/2 in conduit entries
- Mogul base socket is heavy duty porcelain with heavy gauge brass nickel plated double lamp grip screw shell and spring loaded center contacts
- Aluminum reflector is designed for maximum efficiency
- UL 1598/844 Standard|cCSAus 025428/CSA 025428|CSA C22.2 No. 250/137 Standard|NEC Compliant|CEC Standard
