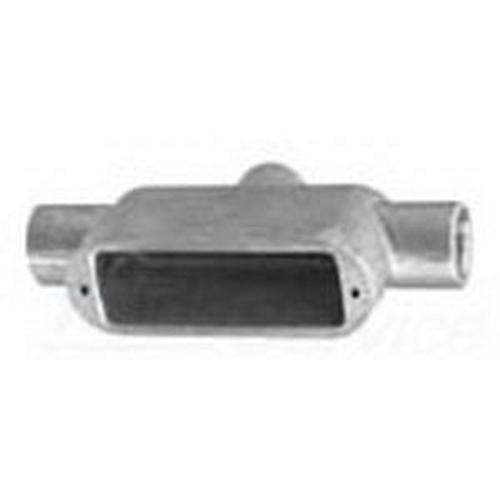

Appleton® UNILETS™ TB49 Type TB Conduit Outlet Body, 1-1/4 in Hub, Form 9 Form, 25.8 cu-in Capacity, Copper Free Aluminum, Natural
Sku #78138109446
MFG #TB49
Attributes
| Type: | Type TB |
| Number of Hubs: | 3 |
| Form: | Form 9 |
| Hub Size: | 1-1/4 in |
| Capacity: | 25.8 cu-in |
| Connection Type: | Tapered/Threaded |
- Roomy interiors - deep body cavity provides increased volume allowing higher wiring capacity
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Completely interchangeable with Crouse-Hinds Mark 9 bodies, gaskets and covers
- Aluminum UNILETS™ produced from a high strength copperfree aluminum alloy, for light weight and high corrosion resistance
- FM9™ covers with integral gasket are approved for use in wet locations
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
- Seven body style
- Cover screws are captive to prevent loss
- UL 514A/514B/E2527|C22.2 No. 18.3|CSA 065183|NEC Compliant|CEC Class I Div 2 per NEC 501.10(B)(4)
- For Rigid Steel/Aluminum and IMC Conduit
