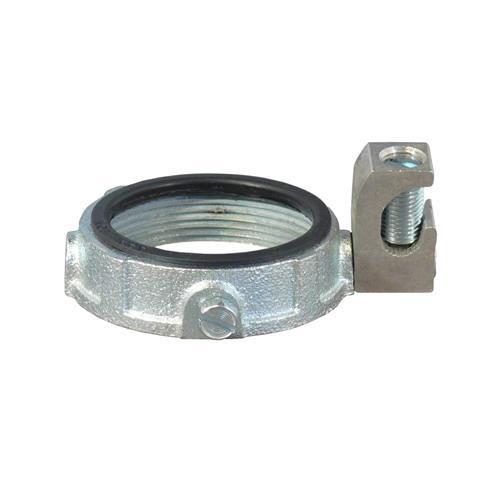

Appleton® GIB-350L-25AC GIB-L-AC Grounding Bushing With Aluminum Lay-In-Lug, 6 AWG to 250 kcmil AC Cable, 3-1/2 in Trade, Malleable Iron, Zinc Electroplated
Sku #78138109126
MFG #GIB-350L-25AC
Attributes
| Series: | GIB-L-AC |
| Trade Size: | 3-1/2 in |
| Temperature Rating: | 302 deg F |
| AC Cable Size: | 6 AWG to 250 kcmil |
| Insulated/Non-Insulated: | Insulated |
| Material: | Malleable Iron |
- For use with threaded rigid metal conduit and IMC
- Provides a compact means of grounding conduit through an insulated bushing
- Can be used with a locknut to terminate conduit at an enclosure
- Lug used to connect bonding jumper to a neutral bus bar
- Insulating liner material is self extinguishing
- The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
- Lugs not sold separately
- Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position
- Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
- ARRA Compliant|CSA C22.2 No.41|NEMA FB-1|UL 467 File No. E6581
