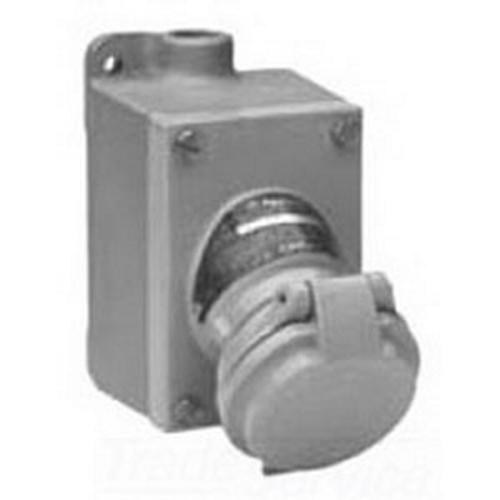

Appleton® Contender™ CPS152201 CPS 1-Gang Dead End Explosionproof Receptacle Assembly With Mounting Box, 125 to 250 V AC/18 V DC, 20 A, 3 Poles, 2 Wires
Sku #78138109059
MFG #CPS152201
Attributes
| Type: | 1-Gang Dead End |
| Voltage Rating: | 125 to 250 V AC/18 V DC |
| Horsepower: | 1 hp |
| Series: | CPS |
| Amperage Rating: | 20 A |
| Number of Poles: | 3 |
- Delayed action construction
- Covers are UL Listed when used with Contender™ series mounting bodies
- CPS factory sealed, external seals not required
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Captive hex head slotted, stainless steel screws
- Receptacles are supplied with pressure terminal connectors
- Fiberglass reinforced thermoset polyester insulating blocks
- CPP516 Plug, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications
- Class I, Division 1 And 2, Groups C, D; UL 1010 (UL 1203), UL 894; UL Listed: E10784
