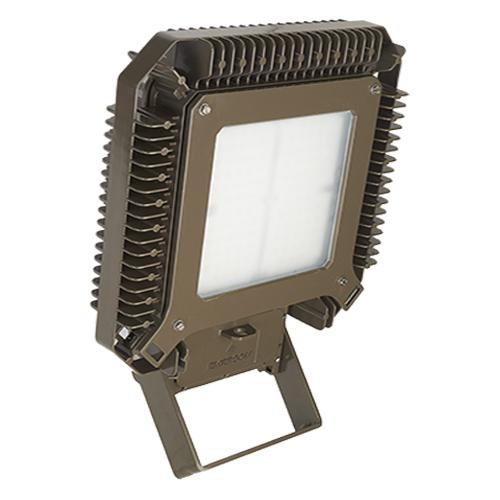

Appleton® Areamaster™ II AMLHL1CF6BU Enclosed Gasketed Floodlight Fixture, LED Lamp, 180 W Fixture, 120/277 VAC, 170/300 VDC, Architectural Bronze Polyester Coated Housing
Sku #78138108786
MFG #AMLHL1CF6BU
Attributes
| Type: | Enclosed Gasketed |
| Voltage Rating: | 120 to 277 V AC/170 to 300 V DC |
| Amperage Rating: | 1.52/0.67/1.02/0.57 A |
| Series: | AMLH |
| Fixture Wattage: | 180 W |
| Lamp Type: | LED |
- Three lumen outputs provide up to 38000 lumens
- Choice of optics for optimal light distribution in a variety of applications
- Separate field wiring compartment with screw terminal block for easy and secure connection
- Two 3/4 in NPT entries provided
- Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slip fitters for easy retrofit
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass lens
- Standard 6 kV surge protection
- Captive fasteners secure one-piece lens
- Field replaceable LED driver and lens cover
- Oil and Gas Refineries, Petrochemical Plants, Foundries, Drilling Rigs, Pulp and Paper Mills, Food and Beverage Processing Facilities, Loading Docks, Power Plants, Water and Wastewater Treatment Facilities
- RoHS Compliant|CSA C22.2 No.250.0|C22.2 No.137|cCSAus 164460|NEC|CEC|IECEx|ATEX Certified|UL 844/1598/8750
