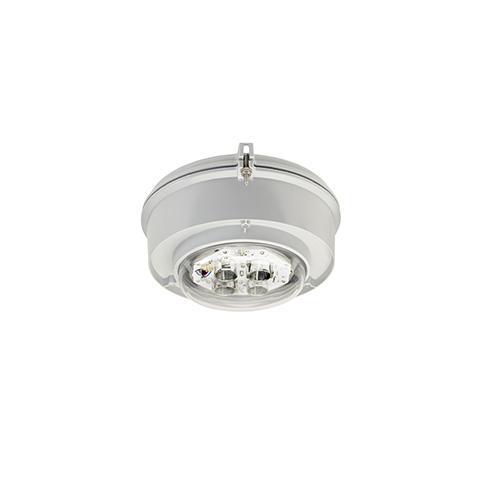

Appleton® Mercmaster™ MLLEDS35D5BU1 Cylindrical Enclosed Gasketed Low Profile General Purpose Luminaire With 120 V AC Photocell Control and NEMA 5 Globe, (50) LED Lamp, 34/35 W Fixture, 120 to 277 V AC, Painted Gray Epoxy Powder Coated Housing
Sku #78138105064
MFG #MLLEDS35D5BU1
Attributes
| Type: | Cylindrical Enclosed Gasketed Low Profile |
| Voltage Rating: | 120 to 277 V AC |
| Amperage Rating: | 0.29/0.13 A |
| Series: | MLLED |
| Fixture Wattage: | 34/35 W |
| Lamp Type: | LED |
- For a wide range of industrial, chemical processing and other areas where flammable gases and vapors are present, marine and wet locations, areas of low clearance, low ceiling heights or where fixture weights must be minimized, pulp and paper mills, processing plants, chemical plants, petrochemical facilities, oil refineries, drilling rigs, foundries, waste and sewage treatment, mining and steel mills
- Compact lightweight low profile design is suited for low mounting heights
- Six standard mounting hood designs allow for mounting in any location
- Uses same mounting hoods as Mercmaster™ III
- Customize to the application requirements with four different globe options
- Three light output levels for retrofit of HID fixtures up to 150 W
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Standard NPT threads
- UL 50/844/1598/1598A/8750|cULus Listed|CSA C22.2 No. 0|C22.2 No. 94|C22.2 No. 60529|C22.2 No. 137|C22.2 No. 250.0|ANSI/IEC 60529|cCSAus 164460|DLC Qualified Products Listed|NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Div 1, Groups E, F, G, Class II, Div 2, Groups F, G Class III, Zone 20, Group IIIC and Zone 21, Group IIIB
