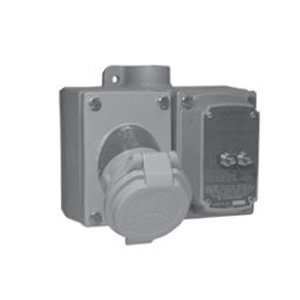

Appleton® CPS152102GFI Contender™ 2-Gang Dead-End Pin and Sleeve Receptacle With GFI Cover, 125 to 250 V AC/18 V DC, 20 A, 3 Poles, 2 Wires
Sku #78138102517
MFG #CPS152102GFI
Attributes
| Type: | 2-Gang Dead-End |
| Voltage Rating: | 125 to 250 V AC/18 V DC |
| Horsepower: | 1 hp |
| Series: | Contender™ CPS |
| Amperage Rating: | 20 A |
| Number of Poles: | 3 |
- Covers are UL listed when used with Contender® series mounting bodies
- Plug mechanical cable clamps prevent strain on cables, they meet or exceed UL strain relief pull-out requirements
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Delayed action construction: Insert plug partially rotate slide on front of receptacle and insert plug fully
- Factory sealed external seals not required
- Plug and receptacles are supplied with pressure terminal connectors
- copper-free aluminum cover
- Captive hex head slotted, stainless steel screw
- Insulating blocks: Fiberglass reinforced thermoset polyester
- Neoprene plug grommet
- Malleable iron mounting bodies: Triple coat (1) zinc electroplate, (2) chromate and (3) epoxy powder coat
- Epoxy powder coated covers and aluminum mounting bodies
- Constructional feature explosionproof and delayed action
- For locations where receptacles used with stationary or portable electrically operated devices such as lighting systems, conveyors, heaters, motor generator sets, air conditioners, compressors, pumps, damp or corrosive conditions and ground fault protection when GFCI cover is used
- NEC/CEC Class I Division 1 and 2 Group C D|UL 1010/1203/894/E10784
- 1/2 in Hub
