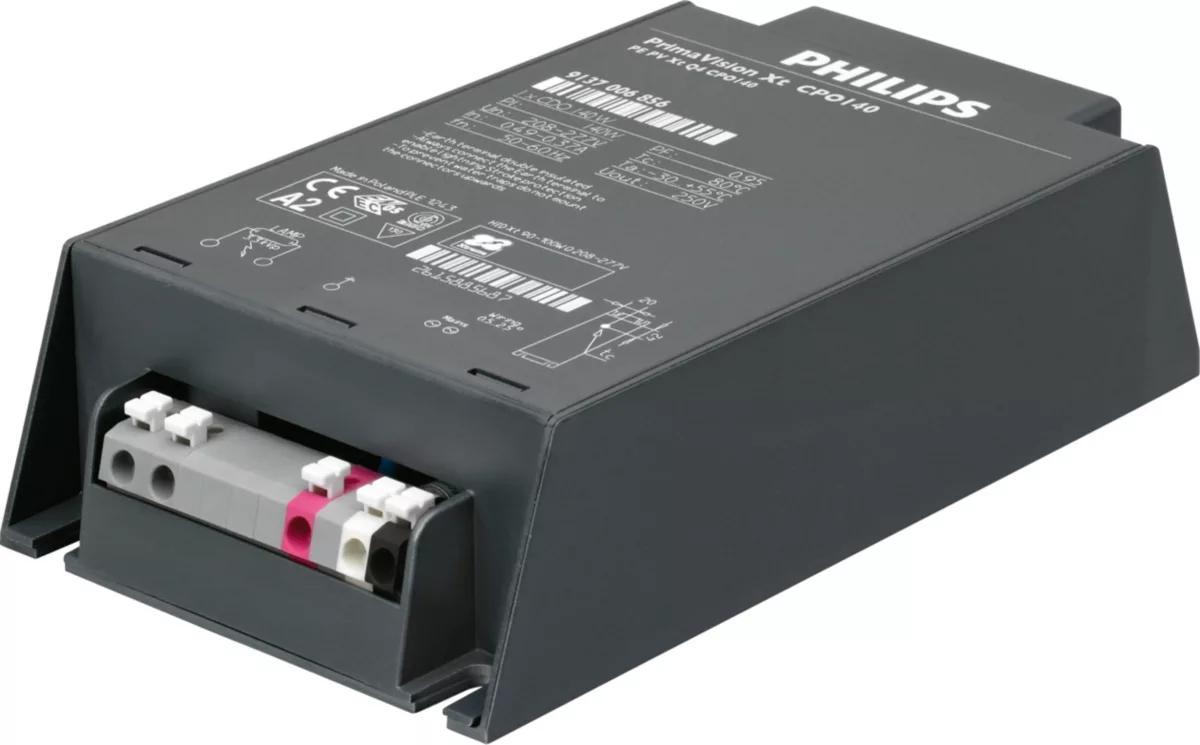

Sku #78108712647
MFG #505107
Attributes
| Type: | Electronic Fixed Light Output CPO-TW |
| Voltage Rating: | 120 to 277 V AC |
| Frequency Rating: | 50/60 Hz |
| Lamp Wattage: | 140 W |
| Amperage Rating: | 0.75 A |
| Start Type: | Pulse |
- IEC 607, 609, 926, 928|ISO 9000:2000, 14001|CE Certified|ENEC Certified|VDE-EMV Certified
- Outdoor Applications
- IntelliVolt® operates on either 120 or 277 VAC or any voltage in between 50/60 Hz
- Smaller and lighter weight than magnetic HID F-can ballasts
- Compact footprints provides greater design flexibility
- Reduced input watts compared to magnetic systems, energy savings, lower cost of ownership
- Low frequency lamp operation prevents acoustic resoce in the lamp arc tube
- Square wave output waveform helps maximize lamp life
- Lamp EOL detection shuts down system at lamp end of life, enhanced safeguard
- Thermally protected, internally fused and output short circuit protected
- Lamp wattage will change less than 0.5% with a +/-10% change in-line voltage
- Metallic enclosure provides enhanced capability for high ambient temperatures by transferring heat away from sensitive internal components
- Connector (side exit) with mounting feet
