- Lighting Luminaire Component and Outdoor Applications
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- 17 Mfd capacitor
- 1.4/0.8/0.7/0.65 A input current (open circuit), 1.9/1.1/0.96/0.85 A input current (starting), 1.58 to 2.4/0.9 to 1.35/0.8 to 1.2/0.68 to 1.05 A input current (short circuit), 2.5/1.45/1.25/1.1 A input current (nominal)
- 4-1/4 x 4-3/4 in (2 coil) core
- 1-3/4 in Dia x 3-3/4 in H oval capacitor

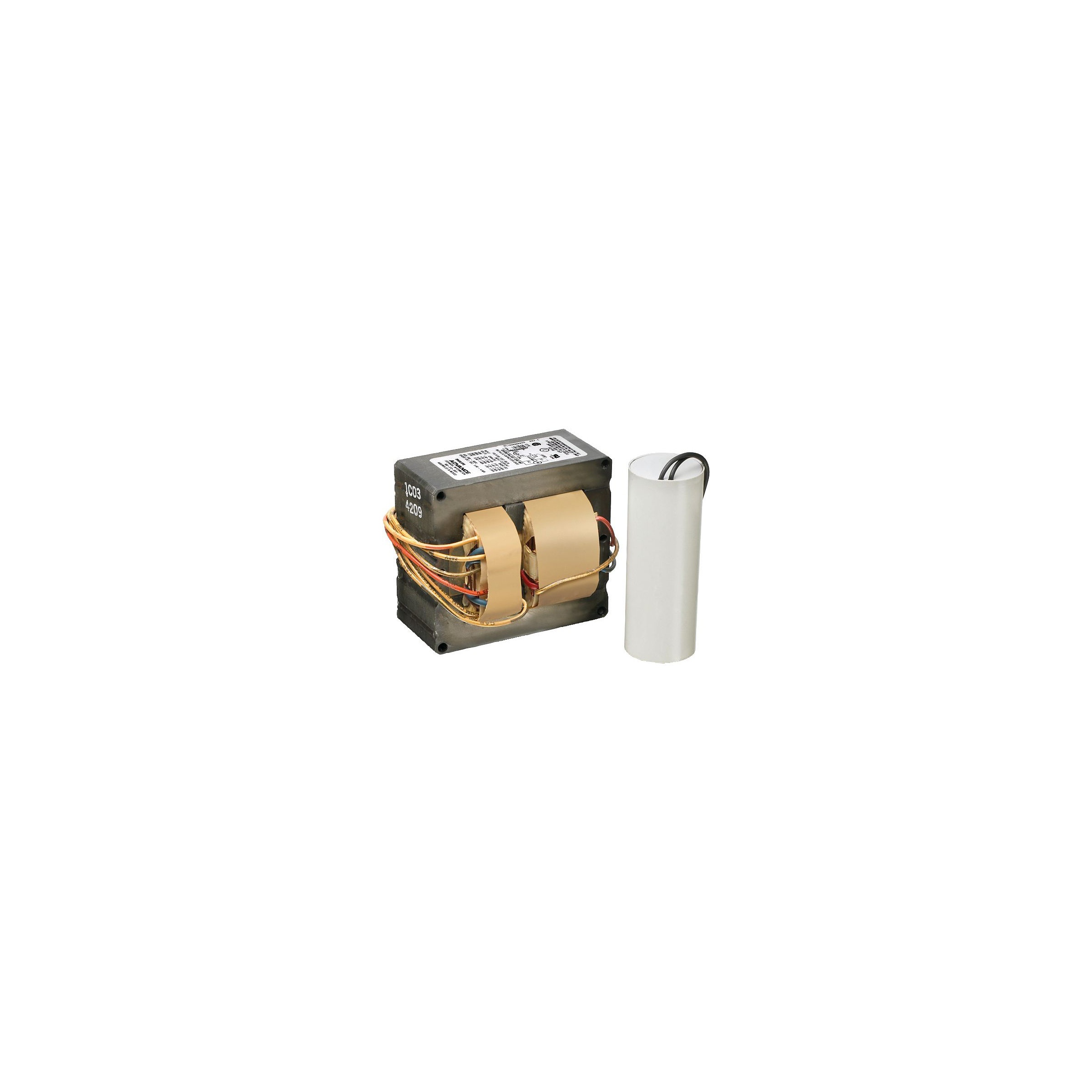

- Ballast replacement kit with dry film capacitor
- UL insulation class H of 180 deg C
- Constant lamp wattage for optimal color control and maximum performance
- Significant energy savings can be achieved when compared to incandescent or magnetic alternatives
- IntelliVolt® operates on either 120 or 277 VAC or any voltage in between 50/60 Hz
- Smaller and lighter weight than magnetic HID F-can ballasts
- Compact footprints provides greater design flexibility
- Reduced input watts compared to magnetic systems, energy savings, lower cost of ownership
- Low frequency lamp operation prevents acoustic resoce in the lamp arc tube
- Square wave output waveform helps maximize lamp life
- Lamp EOL detection shuts down system at lamp end of life, enhanced safeguard
- Thermally protected, internally fused and output short circuit protected
- Lamp wattage will change less than 0.5% with a +/-10% change in-line voltage
- Metallic enclosure provides enhanced capability for high ambient temperatures by transferring heat away from sensitive internal components
- RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
