Sku #78108711419
MFG #71A8251001D
Attributes
| Type: | HID Magnetic |
| Wattage: | 300 W |
| Amperage Rating: | 2.66/1.54/1.32/1.16/0.66 A |
| Lamp Wattage: | 250 W |
| Voltage Rating: | 120/208/240/277/480 V AC |
| Frequency Rating: | 60 Hz |
- Lighting Luminaire Component and Outdoor Applications

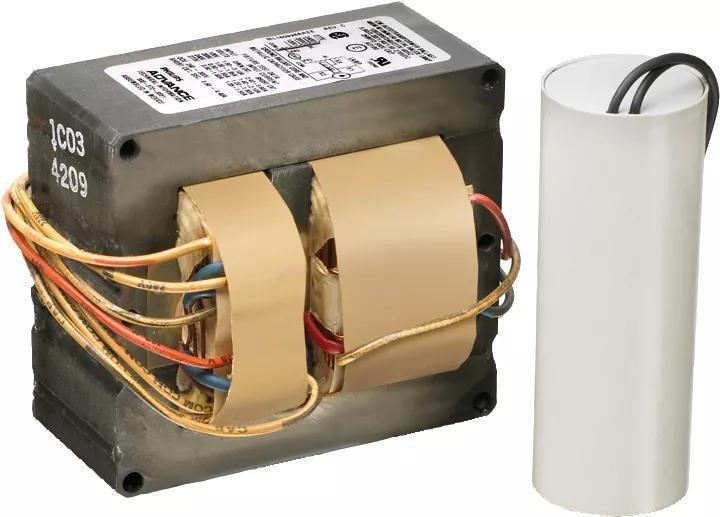

- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- Ballast replacement kit with dry film capacitor
- 35 Mfd capacitor
- 1.82/1.1/0.92/0.83/0.45 A input current (open circuit), 1.32/0.82/0.66/0.56/0.32 A input current (starting), 0.81 to 1.22/0.44 to 0.66/0.39 to 0.58/0.32 to 0.49/0.2 to 0.3 A input current (short circuit), 2.66/1.54/1.32/1.16/0.66 A input current (nominal)
- 4 x 4 in (2 coil) core
- 1.65 in Dia x 3.7 in H oval capacitor
- UL insulation class H of 180 deg C
- UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
