Sku #78108708769
MFG #71A6052001D
Attributes
| Type: | Magnetic |
| Lamp Wattage: | 400 W |
| Voltage Rating: | 120/208/240/277/480 V AC |
| Lamp Type: | HID |
| Wattage: | 454 W |
| Amperage Rating: | 3.8/2.3/1.9/1.65/0.95 A |
- Lighting Luminaire Component and Outdoor Applications

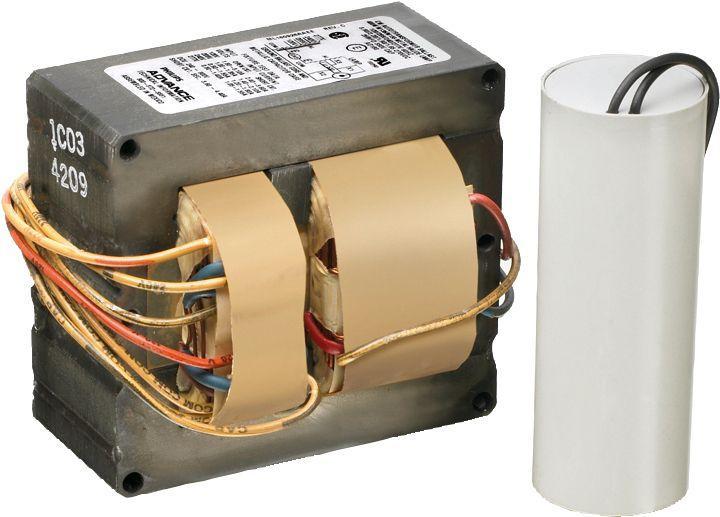

- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- 26 Mfd capacitor
- 2.7/1.6/1.3/0.8/0.65 A input current (open circuit), 3/1.7/1.5/1.2/0.75 A input current (starting), 2.2 to 3.4/1.35 to 2.1/1.1 to 1.7/0.75 to 1.3/0.55 to 0.85 A input current (short circuit), 3.8/2.3/1.9/1.65/0.95 A input current (nominal)
- 4-1/4 x 4-3/4 in (2 coil) core
- 1.75 in Dia x 4.8 in H oval capacitor
- Ballast replacement kit with dry film capacitor
- UL insulation class H of 180 deg C
- RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
