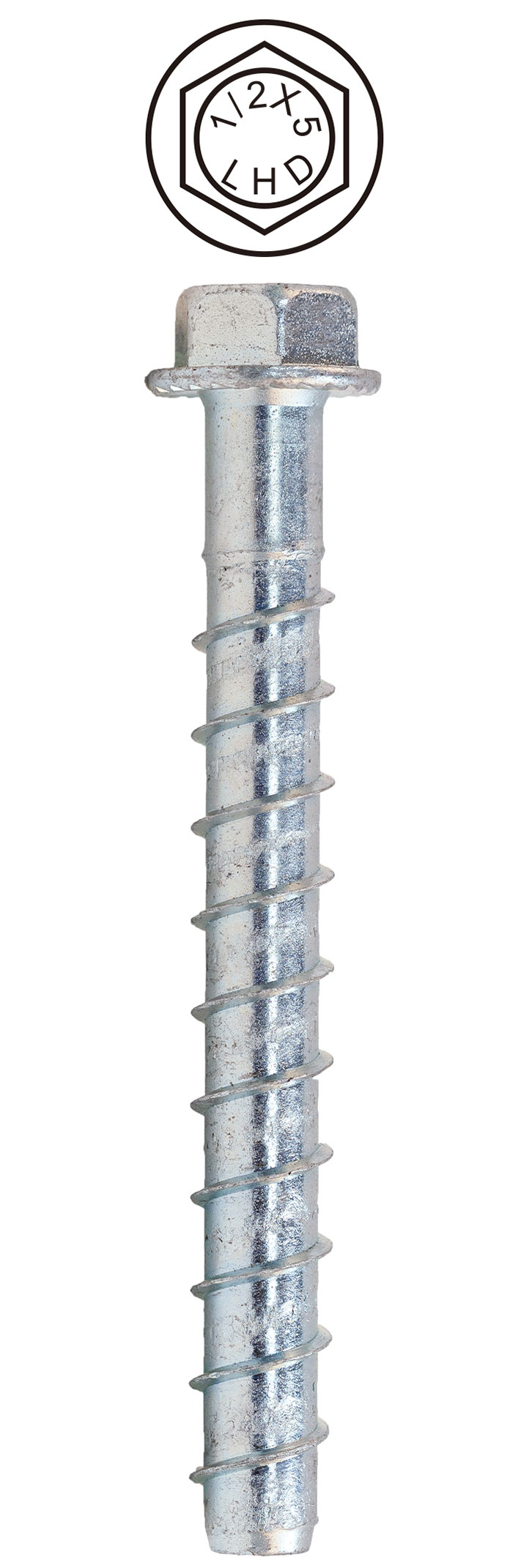

Dottie® CSB12500 Concrete Screw Bolt, Case Hardened Low Carbon Steel, Zinc Plated
Sku #78100285806
MFG #CSB12500
Attributes
| Type: | Concrete |
| Material: | Case Hardened Low Carbon Steel |
| Head Type: | Hex |
| Measurement System: | Imperial |
| Finish: | Zinc Plated |
| Minimum Thread Length: | 4-3/8 in |
- The Mega-Bolt anchor is a heavy-duty, single-piece screw bolt that is quick to install, fully removable, and easily identifiable
- The unique thread design allows it to be installed with minimal torque and enhances job site productivity
- It also eliminates the need for multiple tools and accessories
- Simply attach the appropriate socket driver to any powered impact wrench or torque wrench and fasten
- Steel threads along the anchor shaft tap quickly into the hole during installation to provide deep thread engagement and efficiently transfer the load into the base material
- The reverse serrated teeth on the underside of the hex washer head help to secure the load against the fixture and prevent over torquing
- Low Installation Torque, Removable & Reusable, Reverse Serrated Teeth on Underside of Hex Washer Head, Easy Identification On Head, Specialized Heat Treating Process, Proprietary Through-Hardening Process on Drill Point and Threads
- Cracked and Uncracked Concrete, Static Loads, Seismic Loads, Wind Loads, Guards, Temporary Support Systems, Barriers, Retrofits, and Temporary Anchoring
- ICC-ES Evaluated, LABC 2020, FRC 2020, LARC 2020, CBC 2022, CRC 2022, FBC 2022
