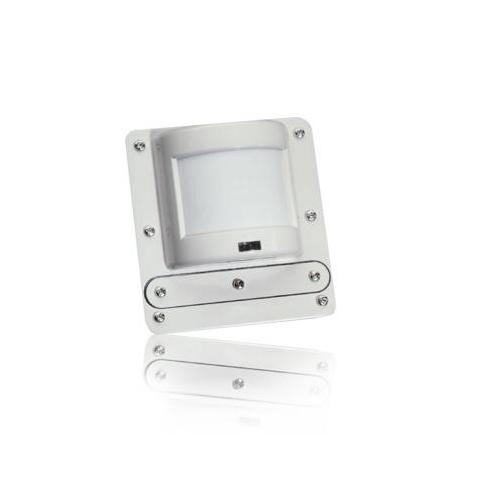

WattStopper® CB-100 Dual Technology Occupancy Sensor, 24 V DC, Passive Infrared Sensor, 2000 sq-ft Coverage, Wall Mounting
Sku #75418226613
MFG #CB-100
Attributes
| Type: | Dual Technology |
| Amperage Rating: | 20 mA |
| Coverage: | 2000 sq-ft |
| Voltage Rating: | 24 V DC |
| Sensor Type: | Passive Infrared |
| Time Delay: | 15 s to 10 min |
- Operates in areas with temperature as low as -40 deg F
- Gasketted, watertight enclosure prevents moisture and dust from entering the sensor and affecting occupancy detection
- Choice of three different coverage patterns depending on needs of the application
- Swivel mount bracket for convenient installation
- Convenient DIP switch adjustable digital time delay of 15 sec, 5 min or 10 min
- DIP switch adjustable sensitivity has 4 settings ranging from minimum to maximum
- Isolated relay can interface with HVAC, EMS systems, monitoring systems or with an additional lighting load
- Red LED indicates occupancy detection
- Dual element, temperature compensated pyroelectric sensor
- Dense wide angle lens
- Low temperature
- Lighting load
- Office Spaces, Classrooms, Aisleways and Warehouses Applications
- UL 244A|UL 508|cUL Listed|RoHS Compliant
