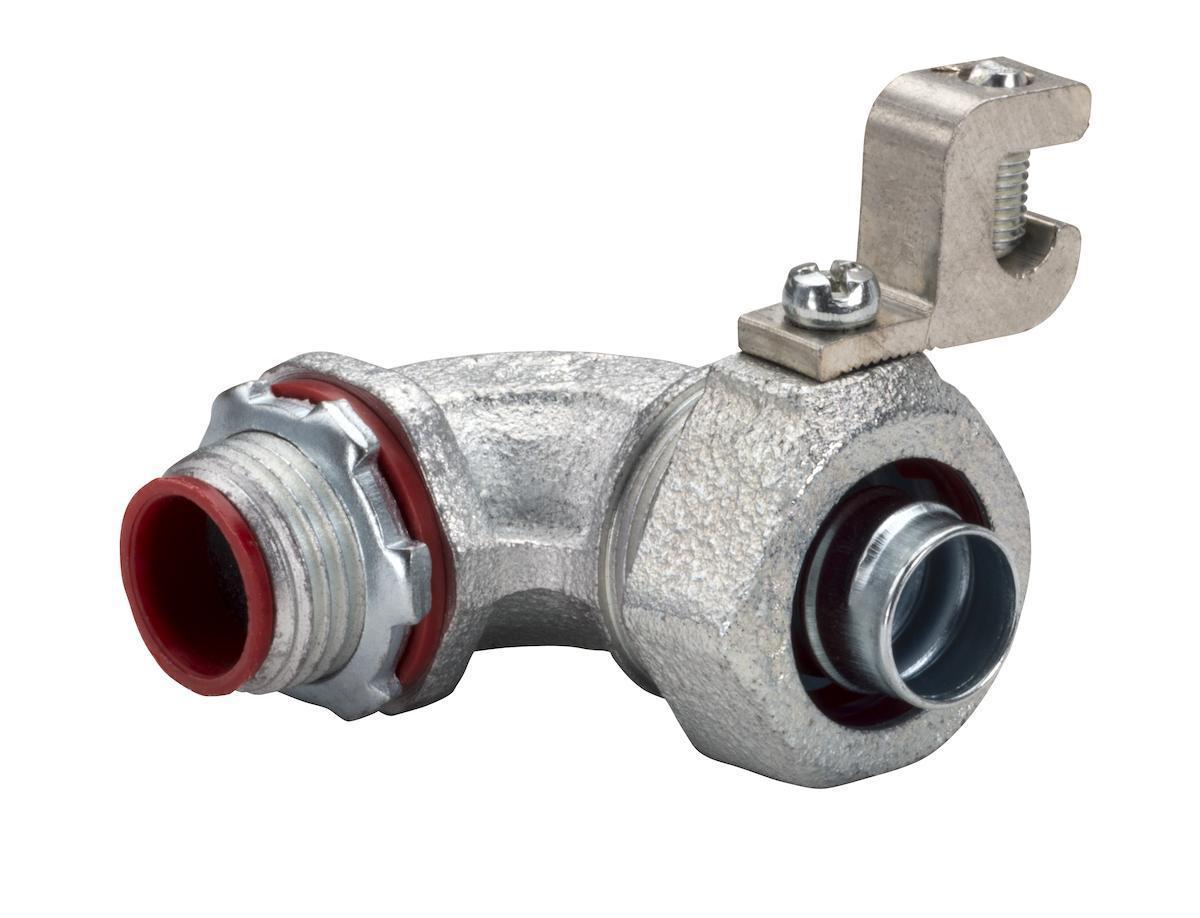

Southwire - Topaz 494SGR Liquidtight Connector With 14 to 4 AWG Aluminum Grounding Lug, Steel Locknut and Insulated Throat, 1-1/4 in Trade, 90 deg, Malleable Iron, Electro-Zinc Plated
Sku #75133886884
MFG #494SGR
Attributes
| Trade Size: | 1-1/4 in |
| Suitable For Use With: | Liquidtight Conduit |
| Finish: | Electro-Zinc Plated |
| Angle: | 90 deg |
| Material: | Malleable Iron |
| Dimensions: | 3.53 in L x 3.15 in W |
- For connect liquidtight conduit and terminate an external bonding conductor that runs parallel to the conduit, the NEC code specifies length limitations and that the bonding jumper must be parallel to the conduit and hazardous location
- cULus E148716|Federal Specification W-S-610E|NEC 501-4 (b), 502-4 (a), (2) 503-3 (a) Class 1 Div 2, Class II Div 1 and 2, Class III Div 1 and 2 and NEC 351-I|NEMA GR 1-2017|UL 467/486A
- Liquidtight, raintight, oiltight
- Aluminum or Copper Lay-in grounding lug
- Insulated throat protects conductors from abrasion damage
- https://youtu.be/yARNJ1_Uct8
