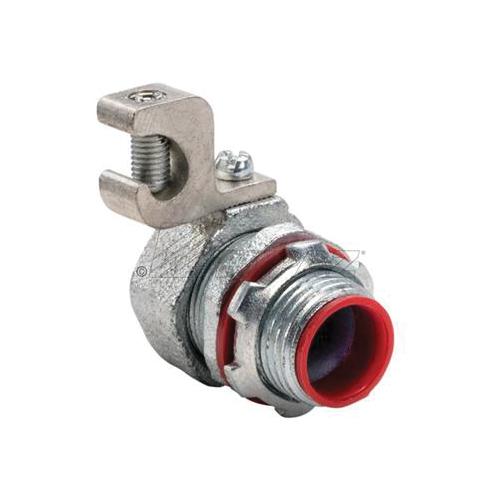

Southwire - Topaz 480SGR Straight Liquidtight Connector With 6/250 AWG Aluminum Grounding Lug, Steel Locknut and Insulated Throat, 4 in Trade, Malleable Iron, Electro-Zinc Plated
Sku #75133886868
MFG #480SGR
Attributes
| Type: | Straight |
| Suitable For Use With: | Liquidtight Conduit |
| Finish: | Electro-Zinc Plated |
| Trade Size: | 4 in |
| Material: | Malleable Iron |
| Dimensions: | 3.66 in L |
- Liquidtight, raintight, oiltight
- Aluminum or Copper Lay-in grounding lug
- Insulated throat protects conductors from abrasion damage
- https://youtu.be/yARNJ1_Uct8
- cULus E148716|Federal Specification W-S-610E|NEC 501-4 (b), 502-4 (a), (2) 503-3 (a) Class 1 Div 2, Class II Div 1 and 2, Class III Div 1 and 2|NEMA GR 1-2017|UL 467/486A
- For connect liquidtight conduit and terminate an external bonding conductor that runs parallel to the conduit, the NEC code specifies length limitations and that the bonding jumper must be parallel to the conduit and hazardous location
