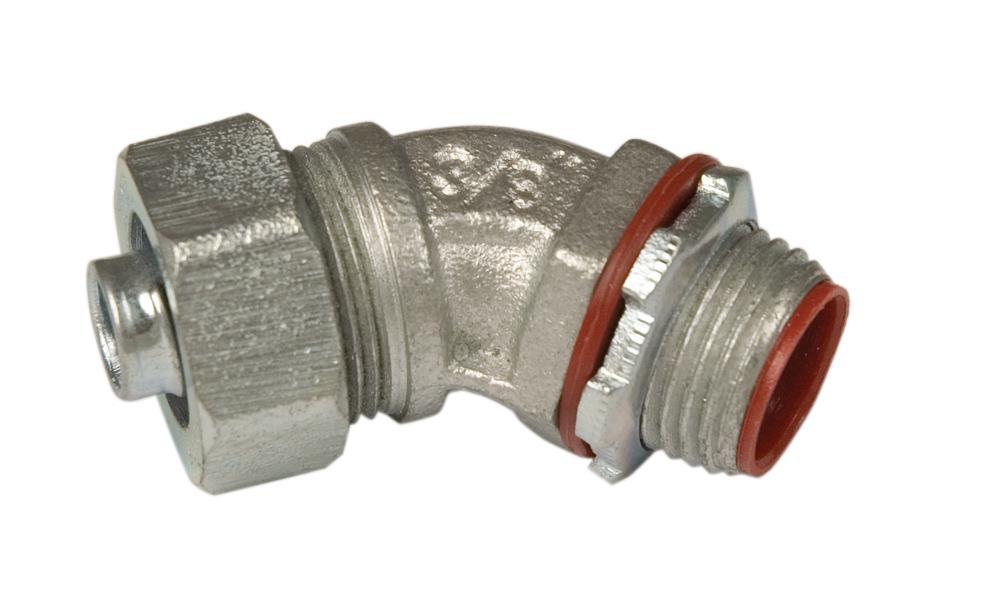

Southwire - Topaz 239S Component Liquid Tight Connector With Insulated Throat, 3-1/2 in Trade, 45 deg, Malleable Iron, Zinc Plated
Sku #75133833591
MFG #239S
Attributes
| Type: | Component |
| Angle: | 45 deg |
| Material: | Malleable Iron |
| Trade Size: | 3-1/2 in |
| Suitable For Use With: | Ground and Seal Liquid Tight Conduit to Box/Enclosure |
| Finish: | Zinc Plated |
- Liquidtight, raintight, oiltight
- Tapered threaded male hub NPT
- Insulated throat protects conductors from abrasion damage
- Compact slim diameter with small turning radius
- Zinc electro plated for excellent durability
- Hazardous and Wet Locations
- 1 Year
- Steel Ferrule and Locknut
- UL 514B|UL/cULus File No. E148716|CSA Certified|Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D|NEC 501-4(b), 502-4(a) (2) Class I Div 2, Class II Div 1 2, Class III Div 1 2
