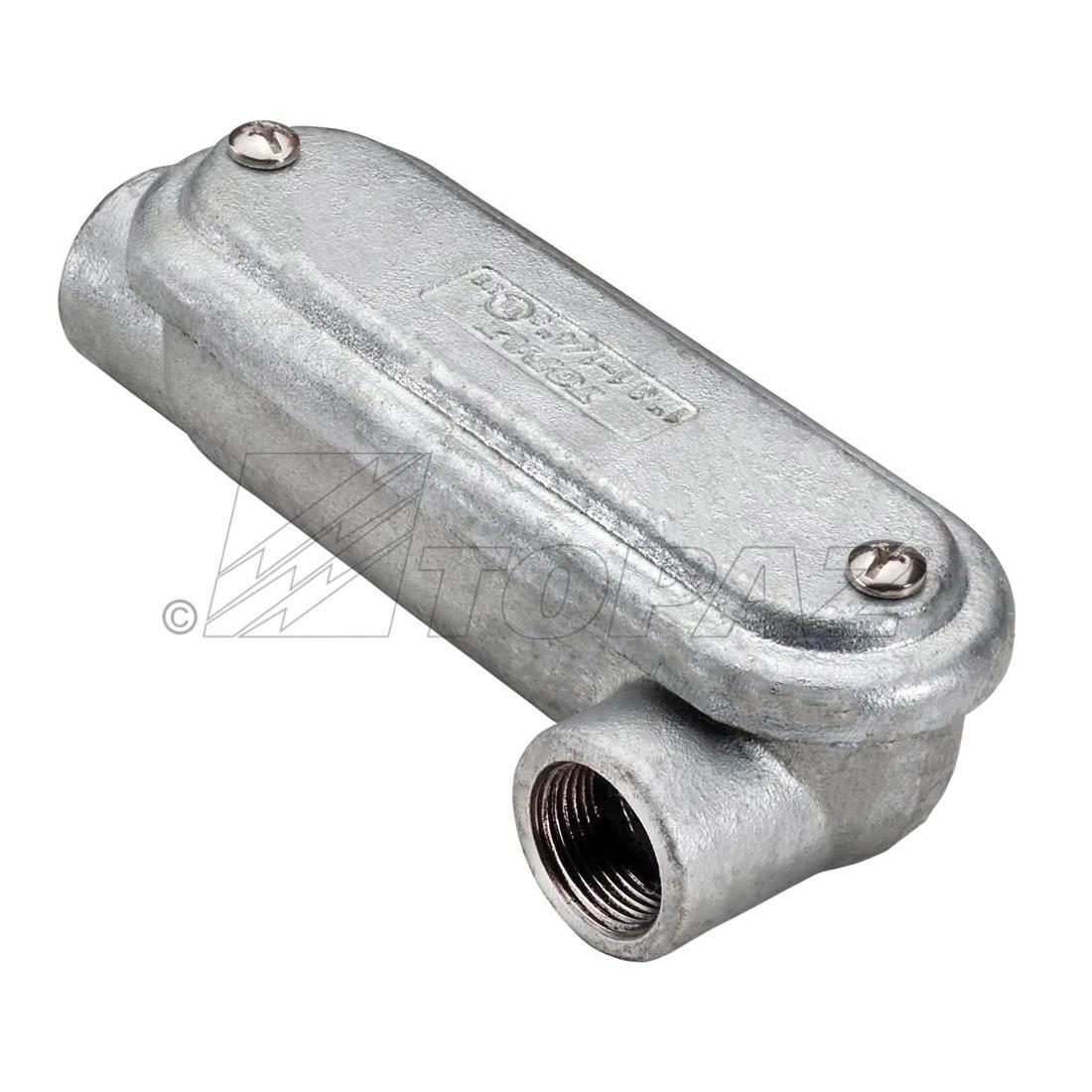

Southwire - Topaz MLL6CGHDG Type LL Mogul Conduit Body With Raised Cover, Neoprene Rubber Gasket and Stainless Steel Cover Screw, 2 in Hub, 75 cu-in Capacity, Malleable Iron, Hot Dipped Galvanized
Sku #75133800988
MFG #MLL6CGHDG
Attributes
| Type: | Type LL |
| Number of Hubs: | 3 |
| Enclosure: | NEMA FB 1/3R |
| Hub Size: | 2 in |
| Capacity: | 75 cu-in |
| Connection Type: | NPT |
- c(UL)us wet locations
- Threaded NPT tapered hubs for Rigid and IMC conduit
- Smooth and round integral hub bushings protect conductor insulation
- Access to wiring for maintenance and future changes
- Assembled with raised cover, gasket and stainless steel cover screws
- ASTM A123/123M|CSA C22.2 File No. 18.3|cULus E195124|Federal Specification W-C-586D, A-A-50563|UL 514A/514D
- For wet location, pull straight or 90 deg angle turns or making taps and splices, provides long and large openings for pulling large conductors, splicing and taps, serve as a pull outlets for conductors that are stiff
