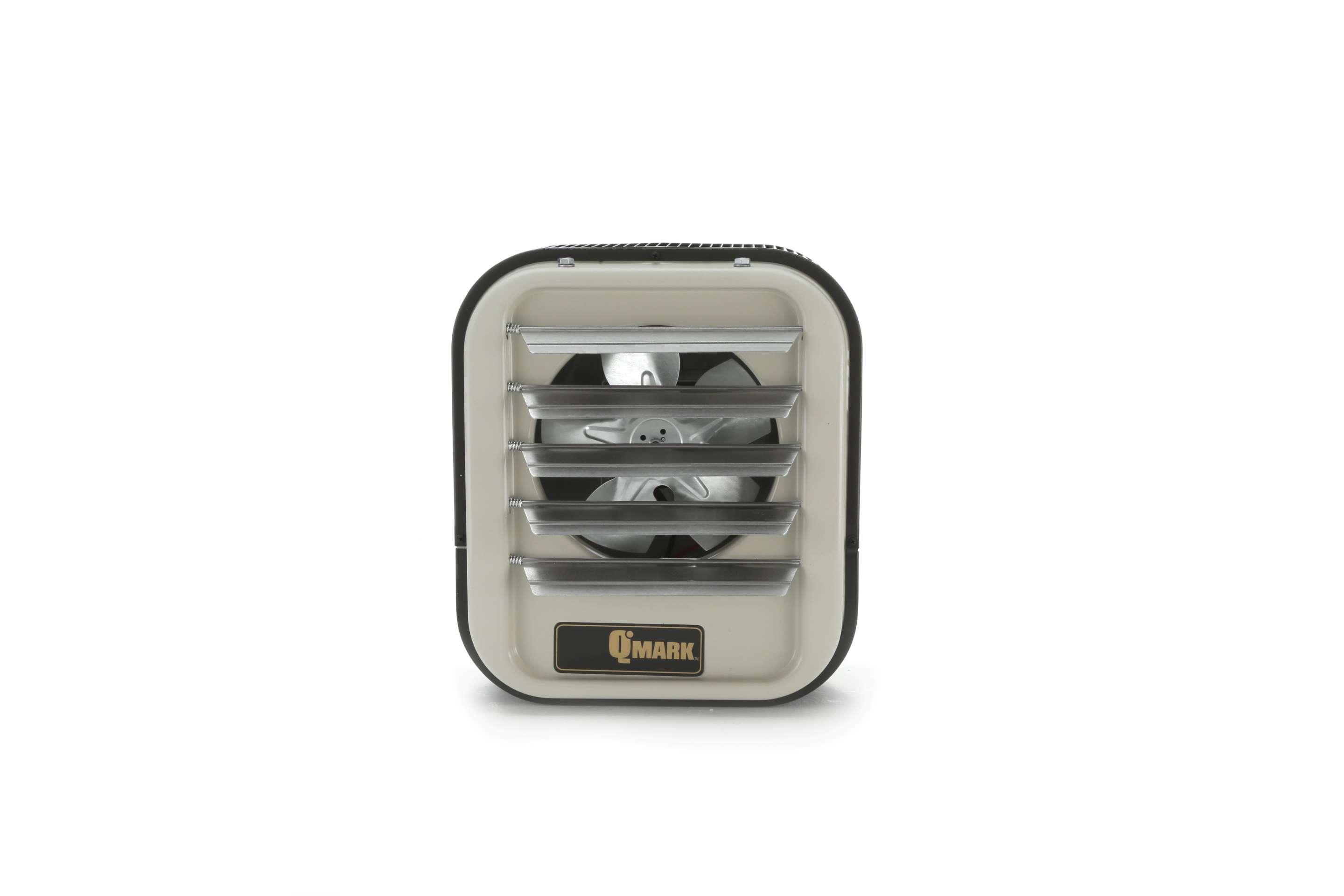

QMARK® MUH302 3-Phase Unit Heater, 22.5/33 kW, 208/240 V
Sku #68536004753
MFG #MUH302
Attributes
| Type: | 3-Phase |
| Voltage Rating: | 208/240 V |
| Power Rating: | 22.5/33 kW |
| Series: | MUH |
| Amperage Rating: | 63/72.3 A |
| Flow Rate: | 2100/1800 cfm |
- Small to medium case construction is 20 ga steel with larger cabinet 18 ga steel
- Branch circuit fusing (when required)
- Completely enclosed fan motor
- Aluminum finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
- Automatic reset linear thermal cut-out, capillary type, provides protection over entire length of element areas (manual reset protection available on made-to-order basis)
- No piping flues, valves or traps needed for installation
- Individually adjustable louvers to direct air flow
- Two speed fan selector switch
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
- cULus File No. E21609|NEC Approved|OSHA Standard|UL Listed
- Indoor/Outdoor, Factories, Warehouses, Garages, Stairwells, Shipping Docks, Power Stations and Mechanical Rooms
