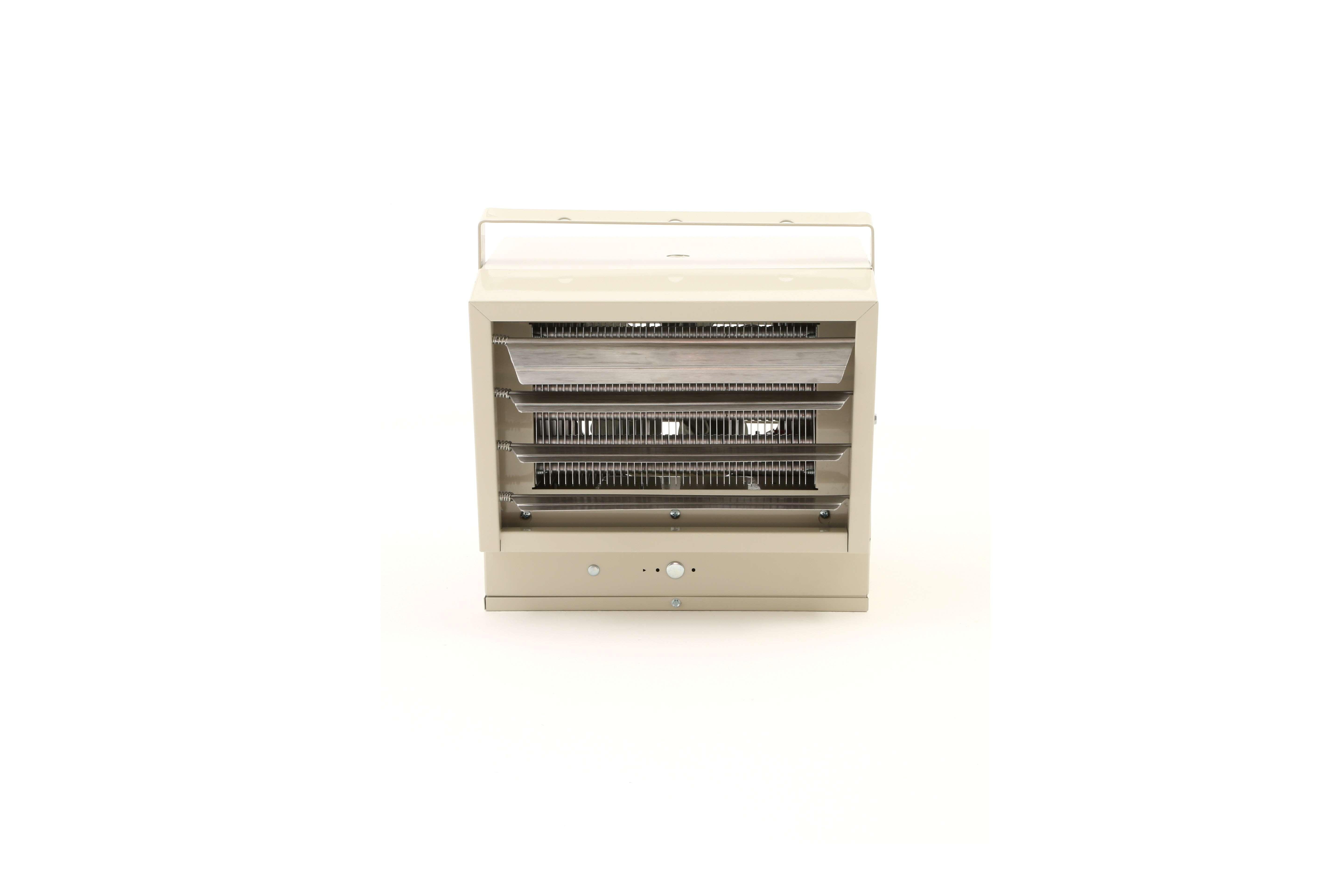

QMARK® IUH3048 3-Phase Heavy Duty Line 6 Unit Heater, 30 kW, 480 V
Sku #68536004194
MFG #IUH3048
Attributes
| Type: | 3-Phase Heavy Duty Line 6 |
| Voltage Rating: | 480 V |
| Frequency Rating: | 50/60 Hz |
| Series: | IUH |
| Amperage Rating: | 36.9 A |
| Power Rating: | 30 kW |
- Industrial, Factories, Garages, Stores, Maintenance Room, Warehouses, Public Buildings, Service Stations, Workshops and Stairwells Applications
- All motors and contactor coils are 240 V and operate on the secondary of a factory installed step-down power transformer on 480 V and 600 V heaters so a separate fan and motor control power source is not needed
- Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down
- Uniform discharge of all heated air lowers internal operating temperatures and prolongs element life
- Cabinet is finished with a polyester powder coating for excellent corrosion-resistance
- Element finished with aluminized paint for corrosion-resistance
- Fins and elements are arranged in a uniform grid pattern and fit closely into air discharge area to assure that all incoming air passes through heating element
- High limit cut off automatically shuts off current in the event of overheating and reactivates unit when temperature returns to normal
- This heavy duty heater provides a long term comfort solution wherever you need to warm-up garages, workshops, basements, even outdoor spaces
- Aim heat anywhere with adjustable louvers and flexible mounting options for both horizontal and vertical applications
- Steel fins are copper-brazed to low-watt density, steel-sheathed tubular heating elements
- 5 and 7.5 kW models also come equipped with ceiling mounting bracket for horizontal or vertical flow mounting or any position in between
- cUL Listed|cULus File No. E21609|UL Listed
