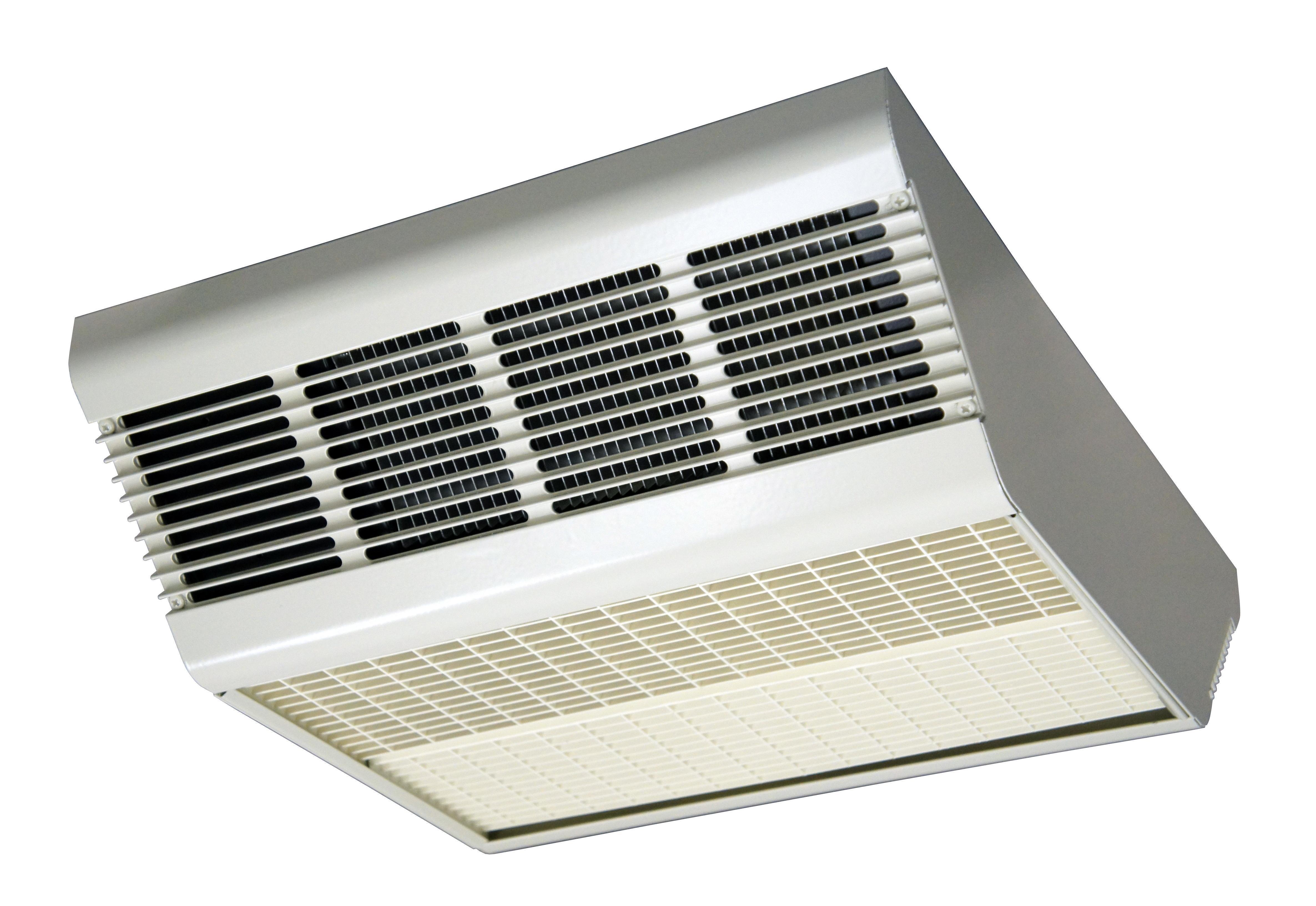

QMARK® CDF558 1 to 3-Phase Downflow Heater, 8530 to 17060 Btu/hr, 208 V, 2000 to 4000 W
Sku #68536001513
MFG #CDF558
Attributes
| Type: | 1 to 3-Phase Downflow |
| Capacity: | 8530 to 17060 Btu/hr |
| Amperage Rating: | 12 to 24 A |
| Series: | CDF |
| Voltage Rating: | 208 V |
| Power Rating: | 2000 to 4000 W |
- Bathrooms, Offices, Conference Rooms, Lobbies, Waiting Rooms, Entrance Ways and Commercial Applications
- CDFSE "surface enclosures" are designed to mount flat on the ceiling and extend only 6 in into the room
- CDFRE "recessed enclosures" have no protrusions outside recess box, allowing the heater to recess only 7 in into ceiling space
- Mounts in T-Bar or permanent ceiling with trim ring
- Field-convertible units available or voltage specific
- BMS-compatible with use of relays
- Three adjustable airflow patterns from 14 ft ceilings - wide, narrow or asymmetrical patterns
- Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down
- cULus File No. E21609
