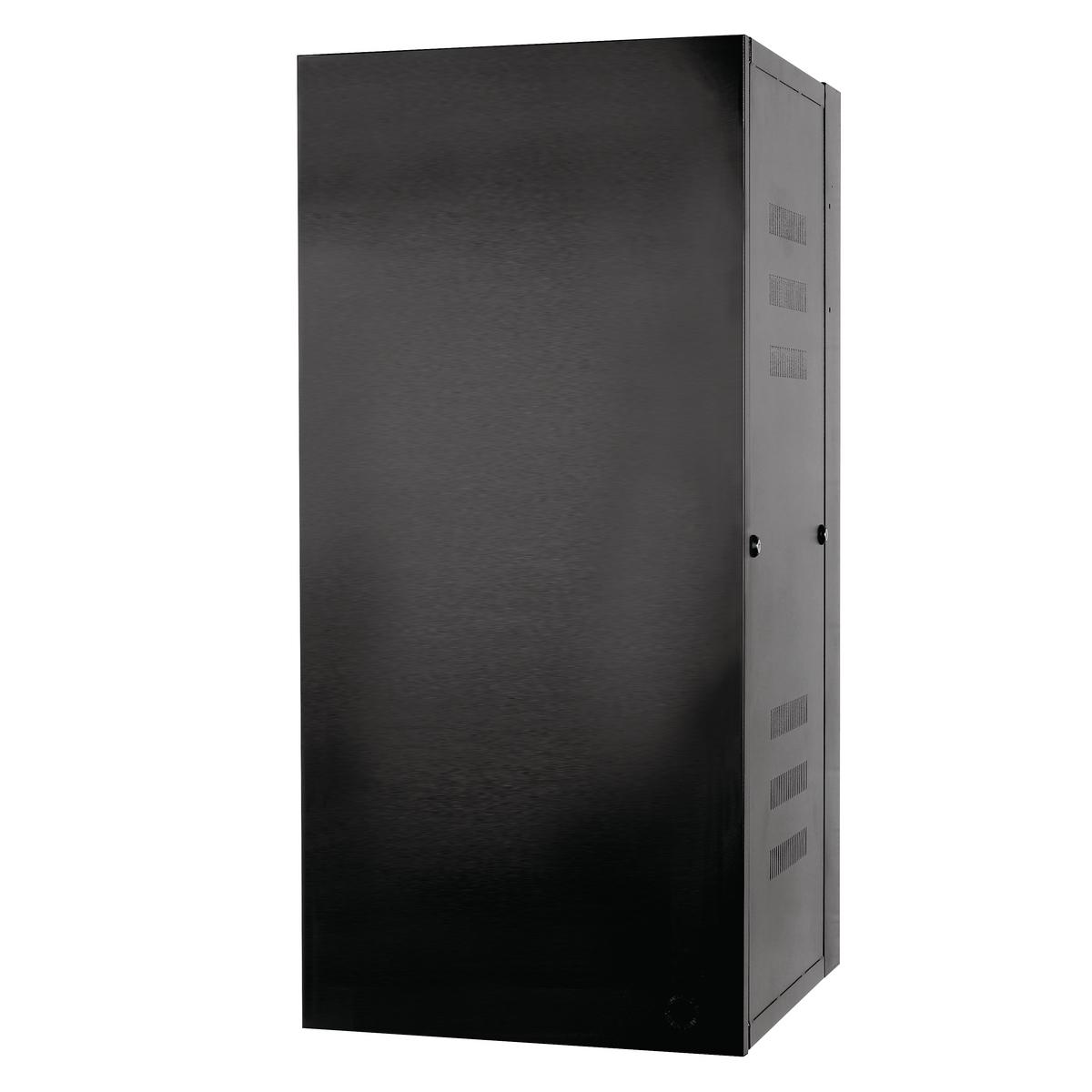

PREMISE WIRING QUADCAB® HSQ48S36 HSQ Solid Door Wall Mount Cabinet, 26.8 in W 51.8 in D, Steel
Sku #66262085348
MFG #HSQ48S36
Attributes
| Type: | Solid Door |
| Width: | 26.8 in |
| Rack Unit: | 26U |
| Series: | HSQ |
| Depth: | 51.8 in |
| Door Size: | 19 in |
- Remote Audio, Video Equipment Rooms, Telecommunications Closets, Process Plants, Control Facilities, Campus LANs, Network Backbones and Data Centers Applications
- Structured cable routing between front and rear sections
- Specifically designed with multiple options to mount to plywood backboards, steel and wood studded walls, cinder block and concrete walls
- Adjustable rails from front to rear notched for easy location
- Compatible with Hubbell® labeling system
- Rear wall easily configured to accept 19 ft panels, 110 blocks, AV splitters and more
- Rear section, center section 14 ga cold rolled steel
- Three enclosure depths accommodate most equipment depths
- Style rails tapped rack-units
- Rails tapped NO 12-24
- Hinged mounting plates (rear door) 11 ga cold rolled steel
- 2 at 2.5 to 3-gang in, 3-gang at 0.75 to 1 in, 1 at HBL4750 series raceway knockouts
- Cabinet closes with one hand even when loaded to 400 lb capacity
- Doors available in smoked gray or solid
- Acrylic window tinted smoke gray
- Vented sides for active equipment
- Wide variety of accessories allow user to tailor to suit
- Mounting holes spaced for 16 in on center studs
- Dedicated bonding points speed grounding and installation
- Cabinet maintains structural integrity when fully loaded at 400 lb
- Top/bottom hinge cover panel 11 ga cold rolled steel
- Rear section, Front Door, (2) 19 in Mounting Angles, Center section with (2) CH751 Locks, (2) Top/Bottom Cover Plates, (2) Hinge Pins, (2) Security Cotter Pins
- EIA-310-E|UL 1863|TIA/UL|RoHS Compliant
- Limited
