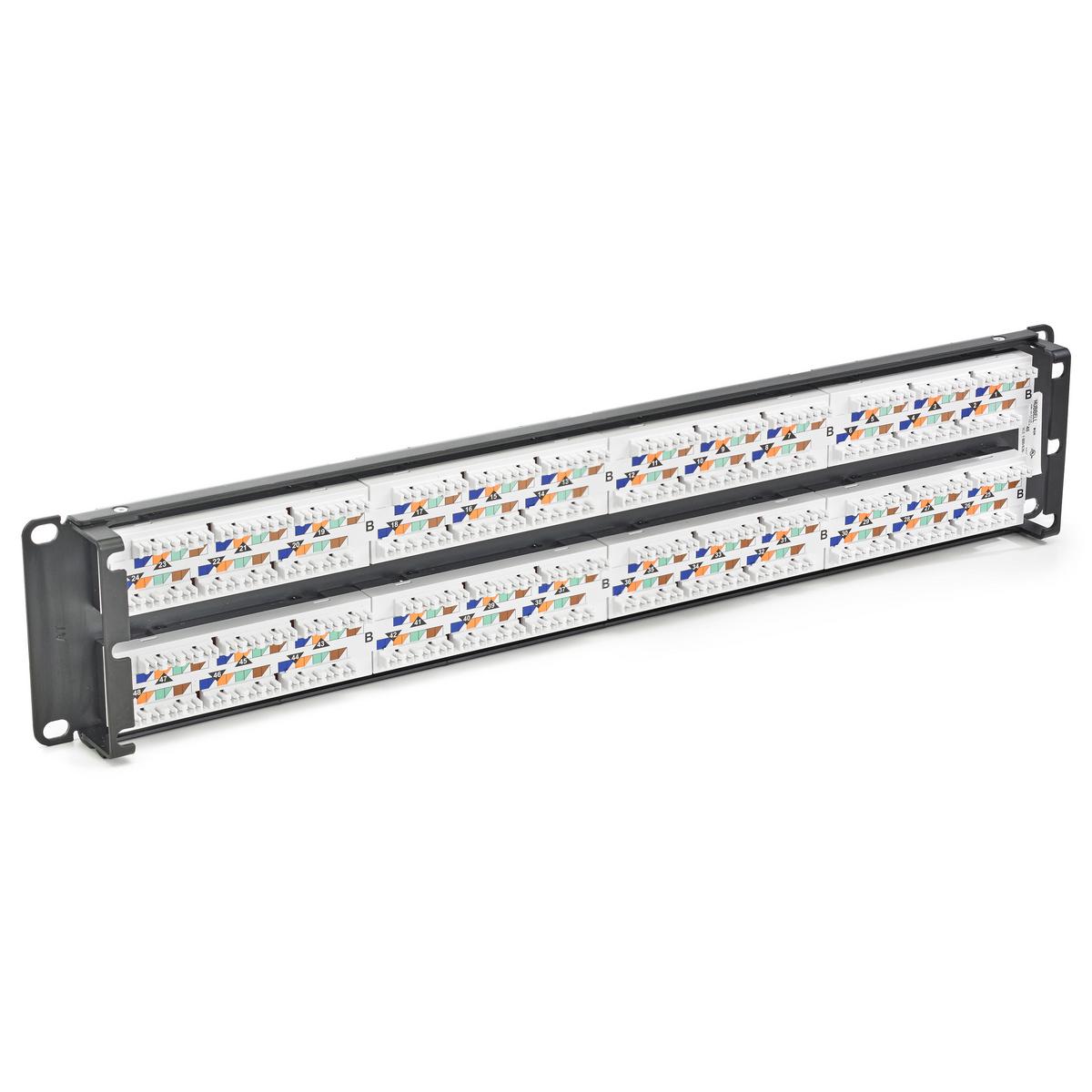

PREMISE WIRING HP648E Telephone Loaded Patch Panel, (48) Ports, Cat 6, Composite/Steel
Sku #66262024718
MFG #HP648E
Attributes
| Type: | Telephone |
| Category Type: | CAT 6 |
| Mounting Type: | Racks |
| Number of Ports: | 48 |
| Wiring Code: | T568A/T568B |
| Material: | Composite/Steel |
- 100% factory tested
- Integrated labeling and icon slots for TIA-606-B compliance
- Rolled edge construction eliminates flex during termination
- 2000 mating cycles with FCC 8-hole plug
- Phosphor bronze with 100 u-in lead free tin over nickel plating rear IDC contact
- Beryllium copper with precious metal plating with nickel under plating nose contact
- 2-rack unit
- Without cable management
- Exceeds component requirements of TIA-568-C.2 Cat 6 and IEC Cat 6 components
- Universal wiring A/B, economy version, straight
- Next margin over TIA 568-C.2 and ISO 11801 class E channel specifications 1 to 250 MHz
- Designed and tested for 1.5 A of continuous current per pair
- RoHS Compliant|ANSI/TIA/EIA 568-C.2|cULus Listed|ETL Listed|ISO/IEC 11801/60603-7-41|UL 1863|UL94 V-0 Flammability Rating|ETL Verified
- IEEE802.3b 1000 BASE-T ETHERNET, IEEE 802.3at PoE and TIA TSB-155 10GbE Over 55 m Applications
