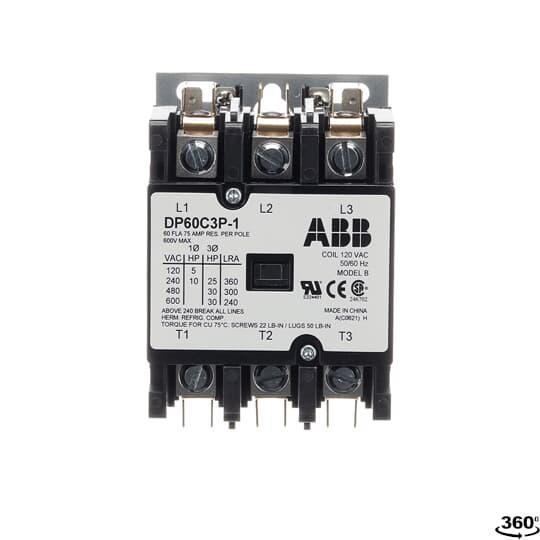

ABB DP60C3P-1 Definite Purpose Contactor, 120 V AC V Coil, 60 A, 3NO Contact, 3 Poles
Sku #66201975010
MFG #DP60C3P-1
Attributes
| Coil Voltage: | 120 V AC |
| Coil Power Rating: | 7/9/59/62 VA |
| Frequency Rating: | 50/60 Hz |
| Maximum Load Current: | 60 A |
| Number of Poles: | 3 |
| Contact Type: | Non-Reversing |
- UL 508|UL Guide No. NLDX2/NLDX8|UL File No. E224401|C22.2 No. 221260|Class 3211 04/3211 84|CE Certified|Semko Certified|EN60947-4-1:2001|CSA Certified|UL Listed
- Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, HVAC, Refrigeration Equipment and Welding
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 Quick-connect or dual 0.25 Quick-connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 62/59 VA inrush, 9/6 VA closed coil power rating
