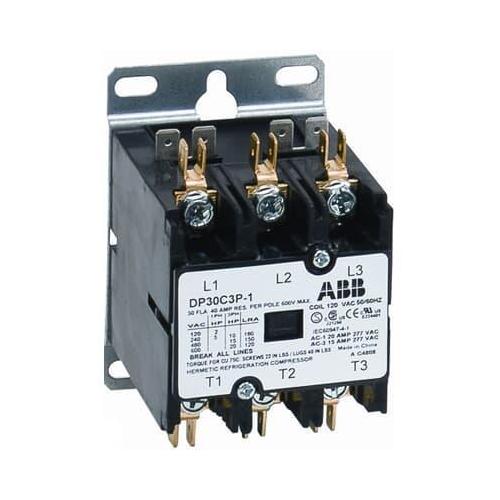

ABB DP30C3P-1 Non-Reversing 3-Pole Definite Purpose Contactor, 120 V AC V Coil, 30 A, 3NO Contact, 3 Poles
Sku #66201974748
MFG #DP30C3P-1
Attributes
| Type: | Non-Reversing |
| Maximum Load Current: | 30 A |
| Number of Poles: | 3 |
| Coil Voltage: | 120 V AC |
| Coil Power Rating: | 6/7.5/60/65 VA |
| Frequency Rating: | 50/60 Hz |
- UL 508|UL Guide No. NLDX2/NLDX8|UL File No. E224401|C22.2 No. 221260|CSA Class 3211 04/3211 84|CE Certified|Semko Certified|EN60947-4-1:2001|CSA Certified|UL Listed
- Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, HVAC, Refrigeration Equipment and Welding
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 65/60 VA inrush, 7.5/6 VA closed coil power rating
- Industry standard mounting plate provides easily accessible mounting holes
- Coil terminals are provided with #6-32 screws and (1) 1/4 in quick connect or dual 1/4 in quick connect terminals
- Coil is class B (130 deg C) insulation system with a wide range of voltages and 50/60 Hz ratings
- 2 hp at 120 VAC, 5 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC 3-phase
- 3 A break, 10 A continuous, 30 A make at 120 VAC contact rating
