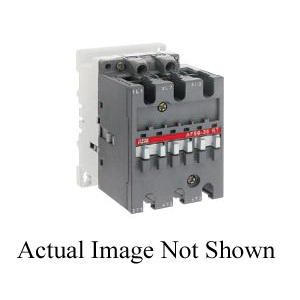

ABB AF753011RT-70 AC/DC Operated IEC Contactor With Ring Tongue Ferrule, 100 to 250 V AC/DC V Coil, 105/125 A, 3NO Contact, 3 Poles
Sku #66201938062
MFG #AF753011RT-70
Attributes
| Type: | AC/DC Operated |
| Maximum Load Current: | 105/125 A |
| Number of Poles: | 3 |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 37 kW, 60 hp |
| Frequency Rating: | 50/60 Hz |
- Designed in accordance to the applicable parts of IEC60077 and EN50155 standard
- Shocks and vibration withstand conforming to IEC61373 (category 1, class B)
- Fire and smoke safety compliance to European standard EN45545 (AF50to AF75: HL2, HL3; AF95B: HL2 hazard levels)
- Electronic coil interface accepting a wide DC control voltage range (0.85 Ucminimum to 1.1Ucmaximum according to IEC60947-4-1) including several Uc control voltages (0.7 to 1.25Uc according to IEC60077) used for battery supply
- Built-in surge suppression
- Side by side mounting without restriction from -40to 70 deg C
- 37 kW at 3-phase 400 V IEC, 60 hp at 480 VAC
- 105 A at 600 VAC UL/CSA, 125 A at 1-phase 690 V IEC
- For controlling 3-phase motors and power circuits up to 690VAC and 220VDC
- RoHs, CSA, cUL, CE, GOST
