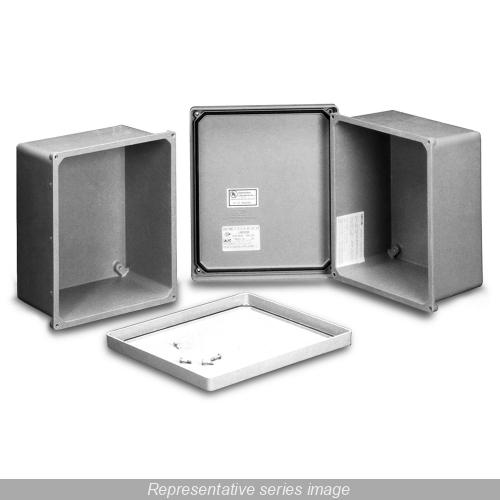

Hammond® PJ16148H Junction Box, 16.27 in H x 14.4 in W x 8.13 in D, Hinged Screw Cover, NEMA 1/2/3/3R/4/4X/6P/12/13/IP66 NEMA Rating, Polyester Plastic
Sku #62398095092
MFG #PJ16148H
Attributes
| Series: | PJ Series |
| Width: | 14.4 in |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X/6P/12/13/IP66 |
| Height: | 16.27 in |
| Depth: | 8.13 in |
| Cover Type: | Hinged Screw |
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Standard JIC sizes under 18 x 16 in
- 10 to 32 threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Cover is fastened with captive stainless steel screws in threaded brass inserts
- Captive oil-resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure
- Impact index of 5 ft/lb
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures and ideal in applications with high temperatures or highly corrosive environments
- CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508A
- Mounting Hardware
- 1 Year
