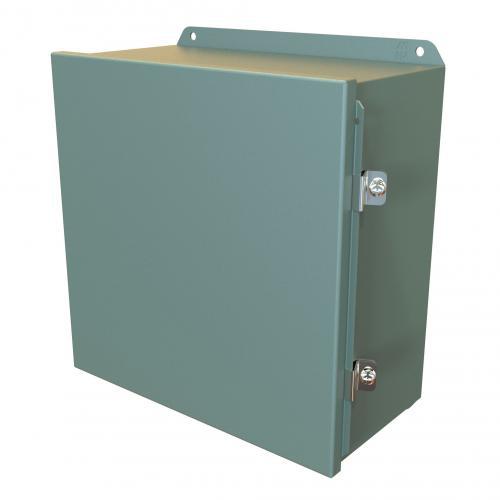

Hammond® HJ12126HLP Less Panel Junction Box With Stainless Steel Clamps, 12 in H x 12 in W x 6 in D, Hinged Cover, NEMA 3R/4/12/13/IP66 NEMA Rating, 14 ga Mild Steel
Sku #62398087917
MFG #HJ12126HLP
Attributes
| Type: | Less Panel |
| Height: | 12 in |
| Depth: | 6 in |
| Series: | HJ H |
| Width: | 12 in |
| NEMA Rating: | NEMA 3R/4/12/13/IP66 |
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuous hinged cover is secured with stainless steel clamps and screws
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures Applications
- CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS Compliant
