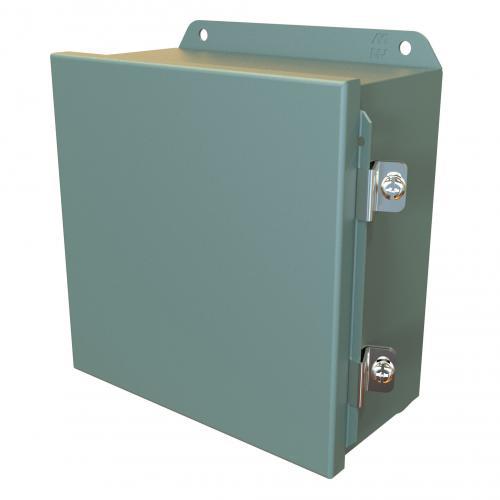

Hammond® HJ884HLP Less Panel Junction Box, 8 in H x 8 in W x 4 in D, Hinged Cover, NEMA 3R/4/12/13/IP66 NEMA Rating, 14 ga Mild Steel
Sku #62398087908
MFG #HJ884HLP
Attributes
| Type: | Less Panel |
| Height: | 8 in |
| Depth: | 4 in |
| Series: | HJ H Series |
| Width: | 8 in |
| NEMA Rating: | NEMA 3R/4/12/13/IP66 |
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuous hinged cover is secured with stainless steel clamps and screws
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
- ANSI 61|CSA Certified|CE Marking|IEC 60529|JIC EGP-1-1967|RoHS Compliant|UL 508A
