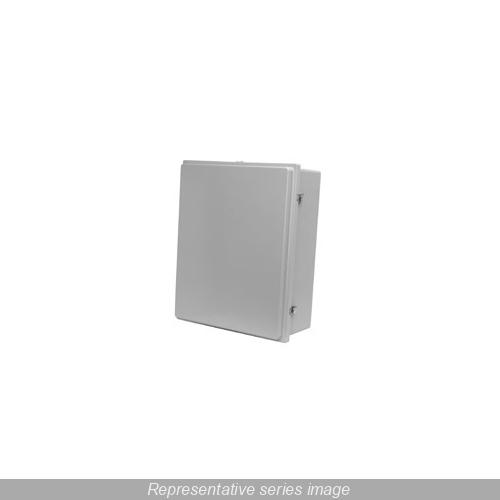

Hammond® PJ24248RT Junction Box With Raised Lid and Solid Cover, 24 in H x 24 in W x 8.13 in D, Continuous Hinged Cover, NEMA 3R/4X/13 NEMA Rating, Fiberglass Polyester
Sku #62398070345
MFG #PJ24248RT
Attributes
| Series: | PJ Series |
| Width: | 24 in |
| NEMA Rating: | NEMA 3R/4X/13 |
| Height: | 24 in |
| Depth: | 8.13 in |
| Cover Type: | Continuous Hinged |
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel draw type "twist latch" door fasteners
- Door fasteners include a provision for padlocking
- Enclosures are available with bonded polycarbonate viewing windows
- Door is supported with a continuous stainless steel hinge
- Captive oil resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure
- Impact index of 6.78 J (5 ft/lb)
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
- IP66 rating
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures and ideal in applications with high temperatures or highly corrosive environments
- RoHS Compliant|CSA Certified|UL Listed
- Mounting Hardware
- 1 Year
