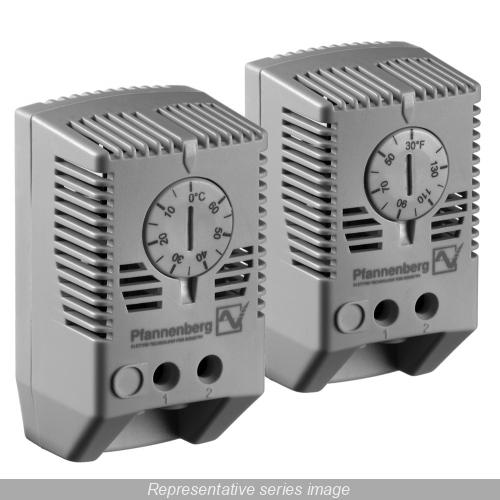

Hammond® SKT011409NC Thermostat, 120/250 V AC, 10/15 A, 30 to 140 deg F Setting, NC Contact, DIN Rail Mount
Sku #62398056519
MFG #SKT011409NC
Attributes
| Series: | SKT |
| Amperage Rating: | 10/15 A |
| Contact Configuration: | NC |
| Voltage Rating: | 120/250 V AC |
| Setting Range: | 30 to 140 deg F |
| Switching Capacity: | 15 A at 120 VAC, 10 A at 250 VAC |
- RoHS Compliant|CSA Certified|CE Certified|cULus Recognized|UL Listed
- Used in conjunction with heaters
- Designed to provide air temperature control and monitoring in cabinets
- Thermostat normally closed for the control of heaters and heater fans
- Contact opens when rising temperatures reach the set point temperature, shutting heater off
- Thermostatic bi-metal sensor element
- Flame retardant plastic UL94 V-0 housing
- 14 AWG wire
- +/-4 deg F switching difference
- Fahrenheit scale
- Mounting on 35 or 38 mm DIN rail
