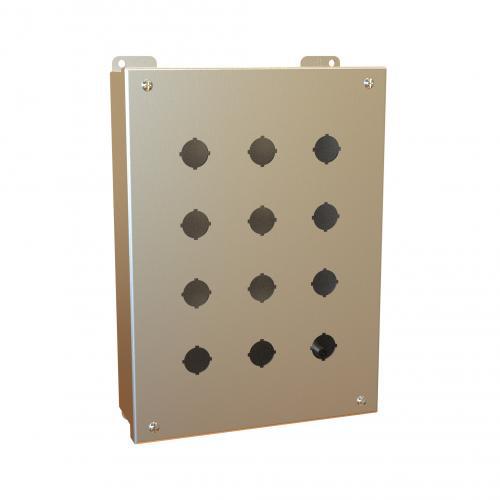

Hammond® 1435SSO Pushbutton Enclosure, 11-3/4 in L x 8-1/2 in W x 3 in D, 12 Outlets, NEMA 3R/4/4X NEMA Rating, 14 ga 304 Stainless Steel
Sku #62398041007
MFG #1435SSO
Attributes
| Series: | 1435SS |
| Width: | 8-1/2 in |
| NEMA Rating: | NEMA 3R/4/4X |
| Length: | 11-3/4 in |
| Depth: | 3 in |
| Cover Type: | Hinged/Removable |
- For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and large amounts of water from any angle
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive stainless steel cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 30.5 mm hole
- CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508|RoHS Compliant
