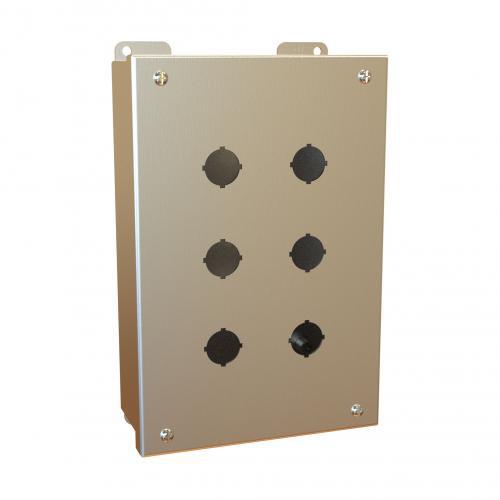

Hammond® 1435SSH Pushbutton Enclosure, 9-1/2 in L x 6.25 in W x 3 in D, 6 Outlets, NEMA 3R/4/4X NEMA Rating, 14 ga 304 Stainless Steel
Sku #62398041005
MFG #1435SSH
Attributes
| Series: | 1435SS Series |
| Width: | 6.25 in |
| NEMA Rating: | NEMA 3R/4/4X |
| Length: | 9-1/2 in |
| Depth: | 3 in |
| Cover Type: | Hinged/Removable |
- Formed 14 ga 304 stainless steel except A and B which are 16 ga 304 or 316 SS
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive stainless steel cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring
- Oil-resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection from dirt, dust, oil and large amounts of water from any angle or where highly corrosive conditions exist
- 30.5 mm hole
- CSA Certified|CE Marking|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508A
- For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and large amounts of water from any angle
