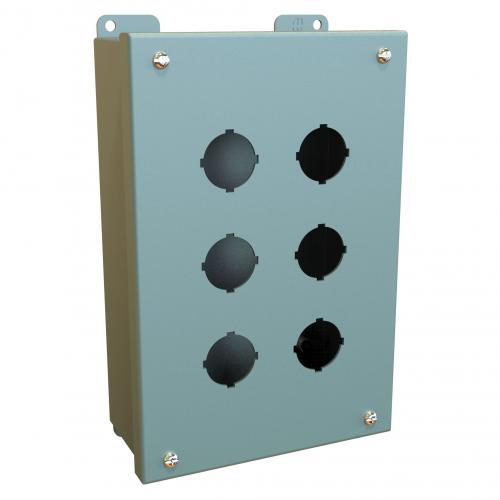

Hammond® 1435H 6-Hole Pushbutton Enclosure, 9-1/2 in L x 6-1/4 in W x 3 in D, NEMA 12/13 NEMA Rating, Mild Steel
Sku #62398040610
MFG #1435H
Attributes
| Type: | 6-Hole |
| Length: | 9-1/2 in |
| Depth: | 3 in |
| Series: | 1435 Series |
| Width: | 6-1/4 in |
| NEMA Rating: | NEMA 12/13 |
- Formed 14 ga steel except A and B which are 16 ga
- Smooth, continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws thread into sealed wells
- Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring
- Oil-resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection from dirt, dust, oil and water
- CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508A
- For standard heavy duty oil tight pushbuttons, switches and pilot lights
