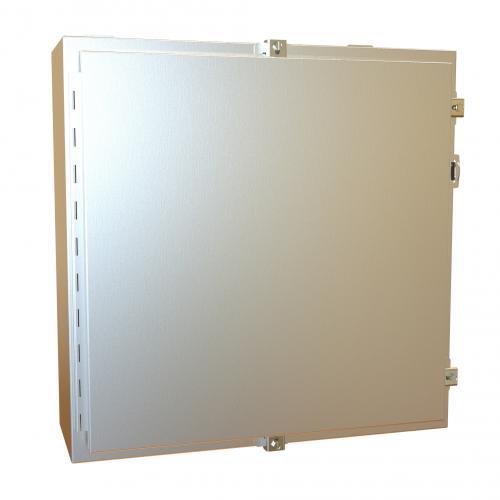

Hammond® 1418N4SSJ8 Enclosure, 24 in W x 8 in D x 24 in H, NEMA 3R/4/4X/12/13/IP66 NEMA Rating, 304 Stainless Steel
Sku #62398038540
MFG #1418N4SSJ8
Attributes
| Series: | 1418 N4 SS Series |
| Depth: | 8 in |
| NEMA Rating: | NEMA 3R/4/4X/12/13/IP66 |
| Width: | 24 in |
| Height: | 24 in |
| Cover Type: | Hinged |
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door stiffeners are provided in the larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured-in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- CSA Certified|CE Marking|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508A
