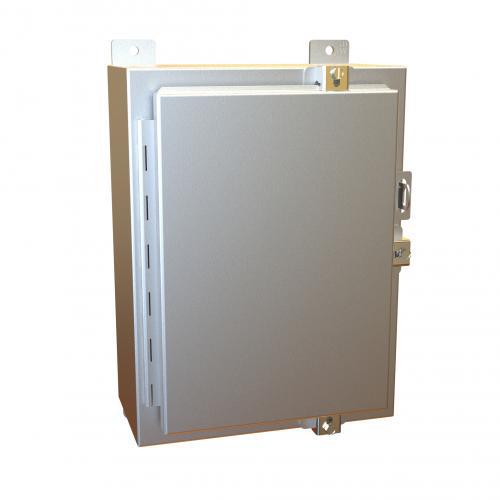

Hammond® 1418N4ALB6 Enclosure With Inner Panel, 12 in W x 6 in D x 16 in H, NEMA 4/4X/12/13/IP66, Aluminum
Sku #62398038300
MFG #1418N4ALB6
Attributes
| Series: | 1418 N4 AL |
| Depth: | 6 in |
| NEMA Rating: | NEMA 4/4X/12/13/IP66 |
| Width: | 12 in |
| Height: | 16 in |
| Cover Type: | Hinged |
- Formed from 0.081 in body, 0.1 in door Type 5052 H-32 aluminum
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Aluminum continuous hinge on door may be removed by pulling the aluminum hinge pin
- Door is secured with easily operated aluminum clamps
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures
- CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|RoHS Compliant|UL 508A
