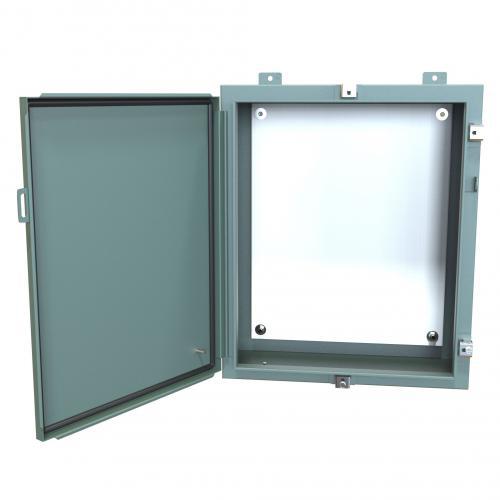

Hammond® 1418N4E8 1-Door Enclosure With Inner Panel and Clamps, 20 in W x 8 in D x 24 in H, NEMA 3R/4/13, Mild Steel
Sku #62398037950
MFG #1418N4E8
Attributes
| Type: | 1-Door |
| Width: | 20 in |
| Height: | 24 in |
| Series: | 1418 N4 |
| Depth: | 8 in |
| NEMA Rating: | NEMA 3R/4/13 |
- For used as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
- Formed 14 ga steel bodies and doors
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure exclude flowing liquids and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
- CSA Certified|CE Certified|IEC 60529|RoHS Compliant|UL 508A
