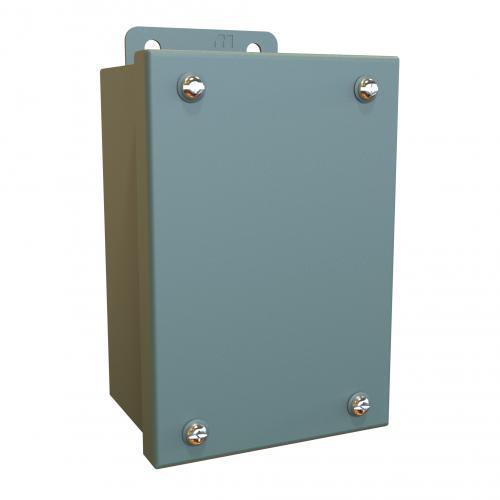

Hammond® 1414SCC Junction Box With Panel, 6 in H x 4 in W x 3 in D, Lift-Off Cover, NEMA 12/13 NEMA Rating, Mild Steel
Sku #62398035660
MFG #1414SCC
Attributes
| Series: | 1414 SC Series |
| Width: | 4 in |
| NEMA Rating: | NEMA 12/13 |
| Height: | 6 in |
| Depth: | 3 in |
| Cover Type: | Lift-Off |
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Cover is secured with captive, plated steel screws, threaded into sealed wells
- Oil-resistant gaskets are permanently secured
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
- CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508A
