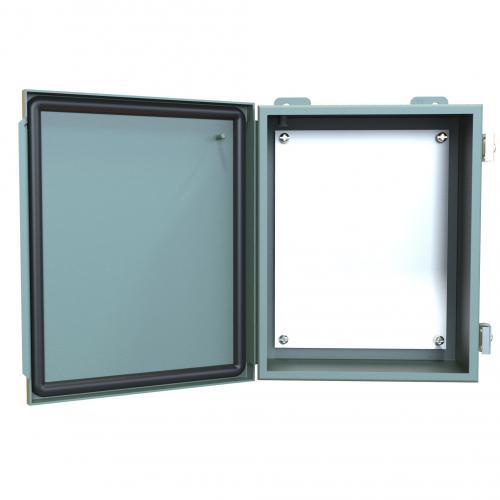

Hammond® 1414PHI 1-Door Junction Box With Panel, 10 in H x 8 in W x 4 in D, Continuous Hinged Cover, NEMA 12/13 NEMA Rating, Mild Steel
Sku #62398034960
MFG #1414PHI
Attributes
| Type: | 1-Door |
| Height: | 10 in |
| Depth: | 4 in |
| Series: | 1414 PH Series |
| Width: | 8 in |
| NEMA Rating: | NEMA 12/13 |
- CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508A
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuously hinged cover is secured with stainless steel clamps and plated steel screws
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
