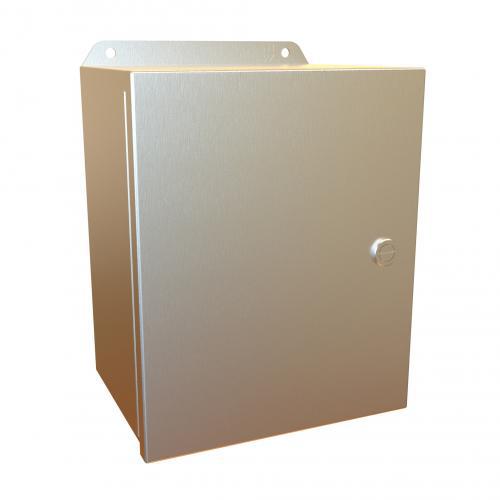

Hammond® EJ1086SS Eclipse™ Junior 1-Door Junction Box With Panel, 10 in H x 8 in W x 6 in D, Continuous Hinged Cover, NEMA 3R/4X/13 NEMA Rating, 304 Stainless Steel
Sku #62398017343
MFG #EJ1086SS
Attributes
| Type: | 1-Door |
| Height: | 10 in |
| Depth: | 6 in |
| Series: | Eclipse™ Junior |
| Width: | 8 in |
| NEMA Rating: | NEMA 3R/4X/13 |
- Body and cover are formed from 16 ga 304 stainless steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Formed lip on enclosure to exclude flowing liquids and contaminants
- 14 ga welded brackets provide for enclosure mounting
- Continuously hinged cover has stainless steel hinges and provides 180 deg opening
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Quarter-turn latches formed from 316 stainless steel
- Seamless poured-in place gasket
- Tapped studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
- For high temperature applications, a gasket retainer may be required, please refer to factory
- https://vimeo.com/120162073
- For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
- Grounding and Panel Mounting Hardware
- CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508A
