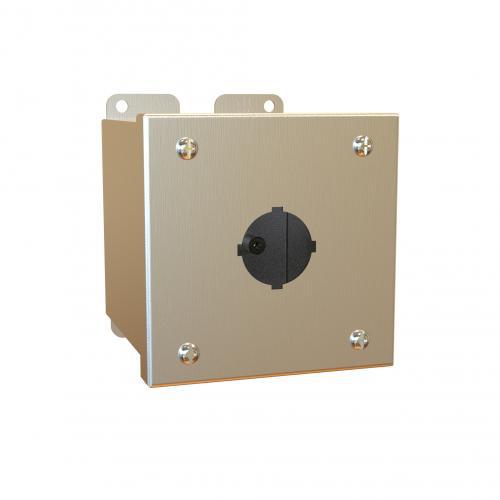

Hammond® 1437SSA 1-Hole Extra Deep Pushbutton Enclosure, 4 in L x 4 in W x 4.8 in D, NEMA 4/4X/IP66, 1 Outlet, 16 ga 304 Stainless Steel
Sku #62398015385
MFG #1437SSA
Attributes
| Type: | Extra Deep |
| Length: | 4 in |
| Depth: | 4.8 in |
| Series: | 1437SS |
| Width: | 4 in |
| NEMA Rating: | NEMA 4/4X/IP66 |
- Smooth continuously welded seams
- Welded brackets provide for enclosure mounting
- Captive cover screws fasten into threaded, sealed wells
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring
- Oil resistant gasket and adhesive
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- 30.5 mm hole
- For standard heavy duty oil tight pushbuttons, switches, pilot lights and provide protection from dirt, dust, oil and water
- CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS Compliant
