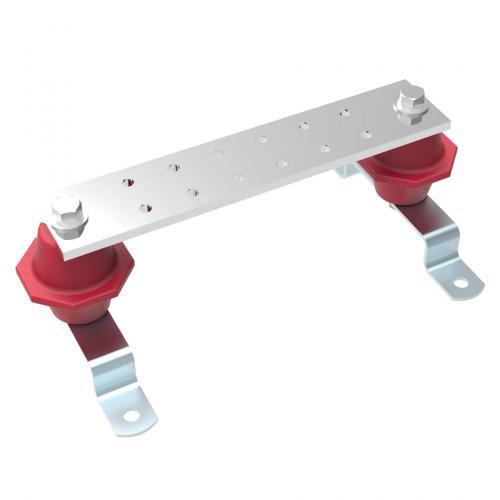

Hammond® BUSBAR2X10 Modular Bus Bar, 0.375 in Dia Mounting Bracket Hole, Glass Reinforced Thermoset Polyester/Stainless Steel
Sku #62398003156
MFG #BUSBAR2X10
Attributes
| Type: | Modular |
| Specifications: | 0.375 in Dia Mounting Bracket Hole |
| Dimensions: | 10 in L x 2 in W x 1/4 in THK |
| Series: | BUSBAR |
| Material: | Glass Reinforced Thermoset Polyester/Stainless Steel |
| Country of Origin: | CA |
- Electro tin plated copper bus bar, 100/300 u-in of plating
- The thin tin coating acts as a shield, inhibiting copper oxidization
- Copper oxidization causes a poor electrical contact which then gets hot and increases the copper oxidization rate
- Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper
- 3200 VAC rated glass reinforced thermoset polyester insulators, 180+ sec of arc resistance, UL 94 V-0 flame resistance
- (12) 1/4-20 x 0.75 in L Stainless Steel Phillips machine screw, (12) 1/4 Stainless Steel Lock Washer, (12) 1/4-20 Stainless Steel Hex Nut, (2) Insulators/Brackets
- ECCN EAR99|RoHS Compliant
- 1 Year
